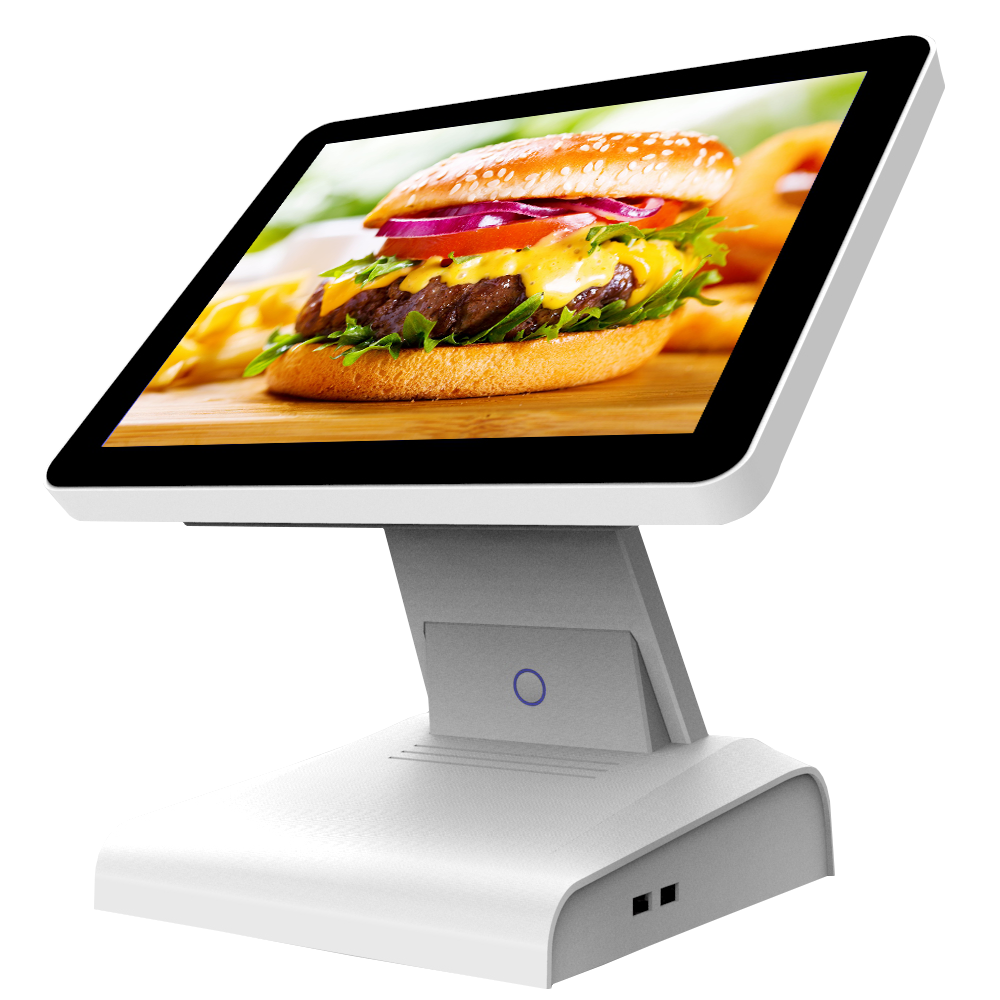

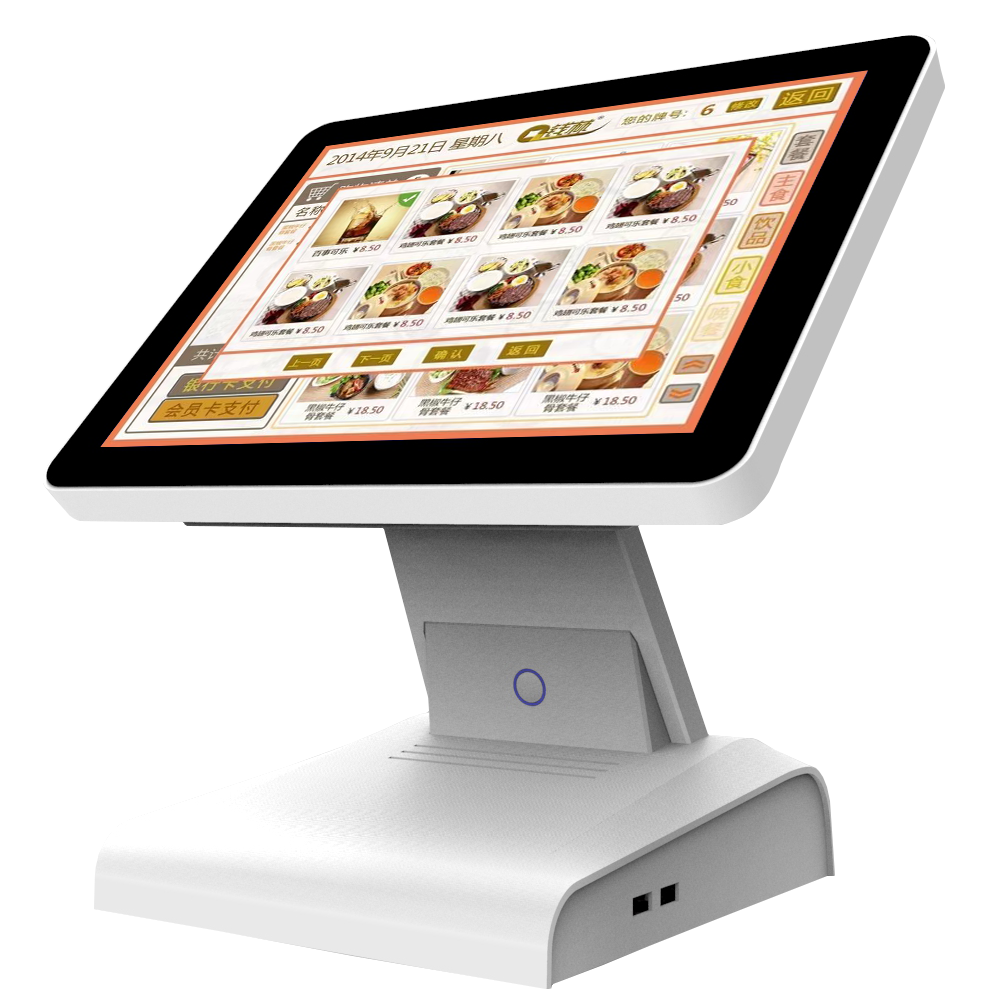

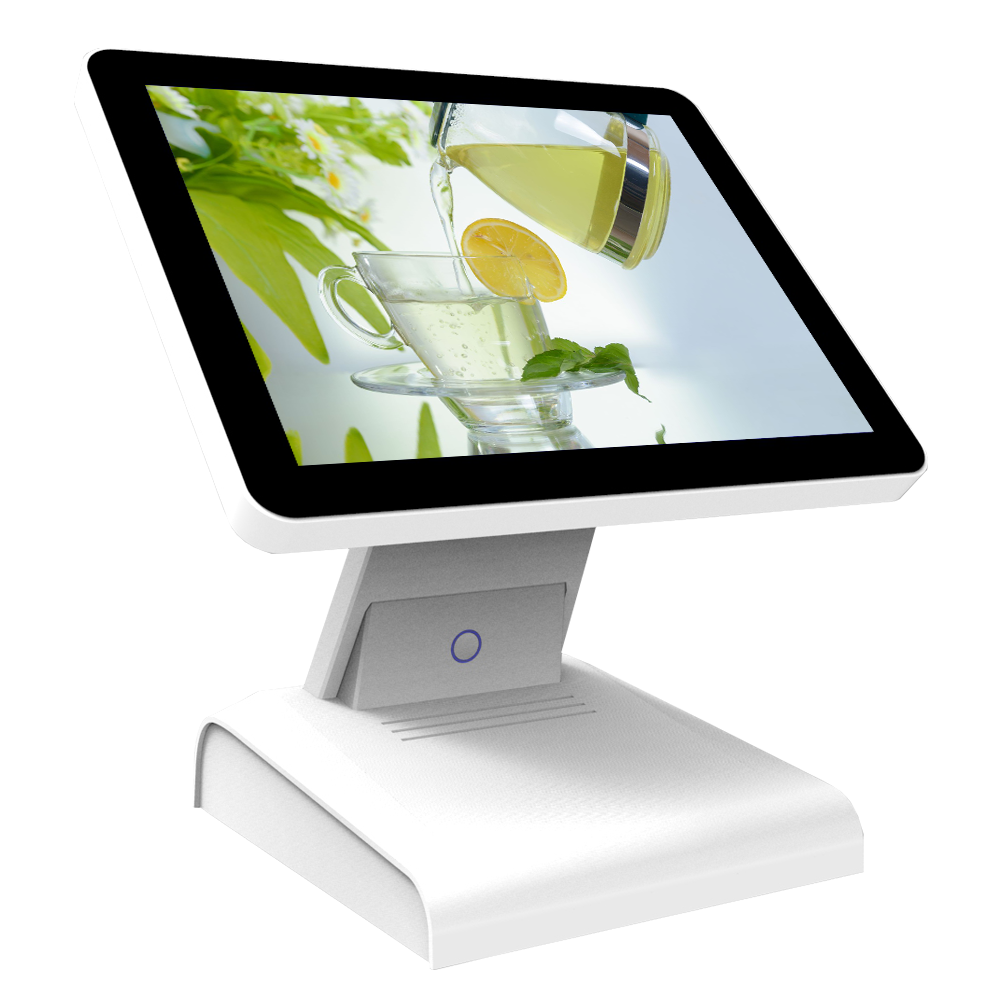

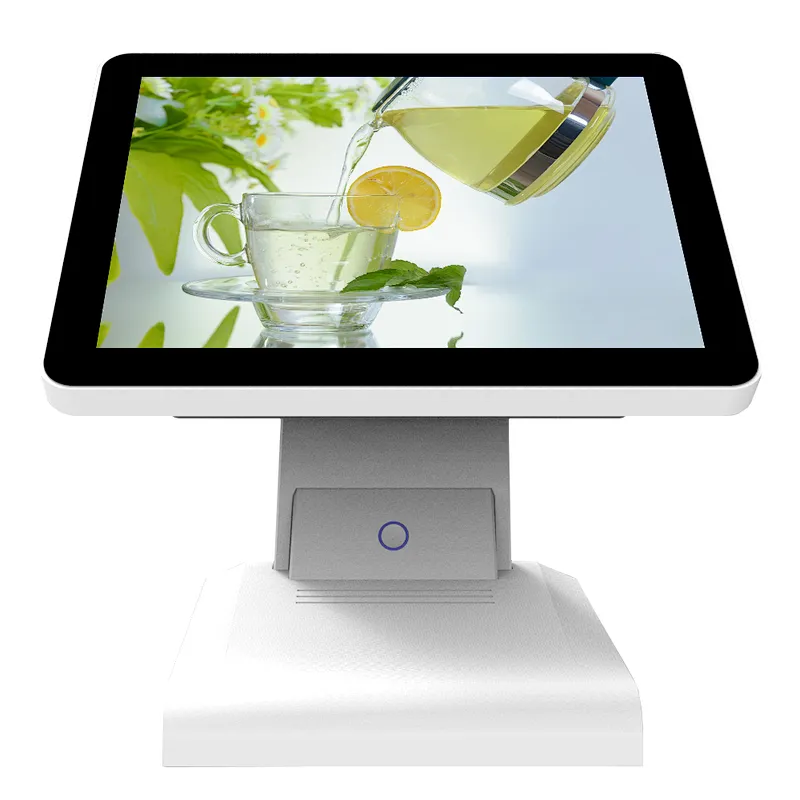

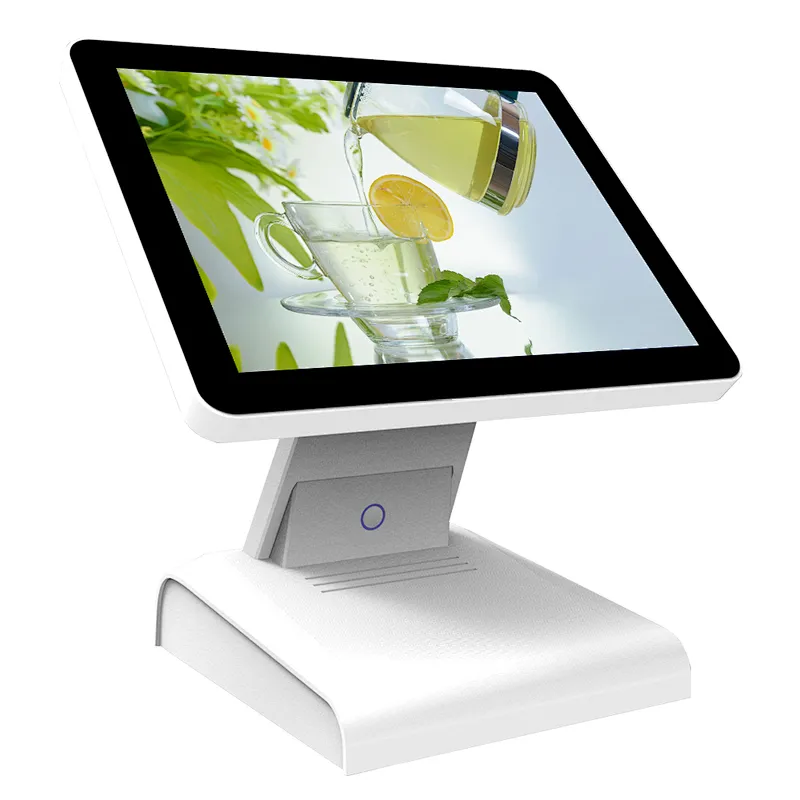

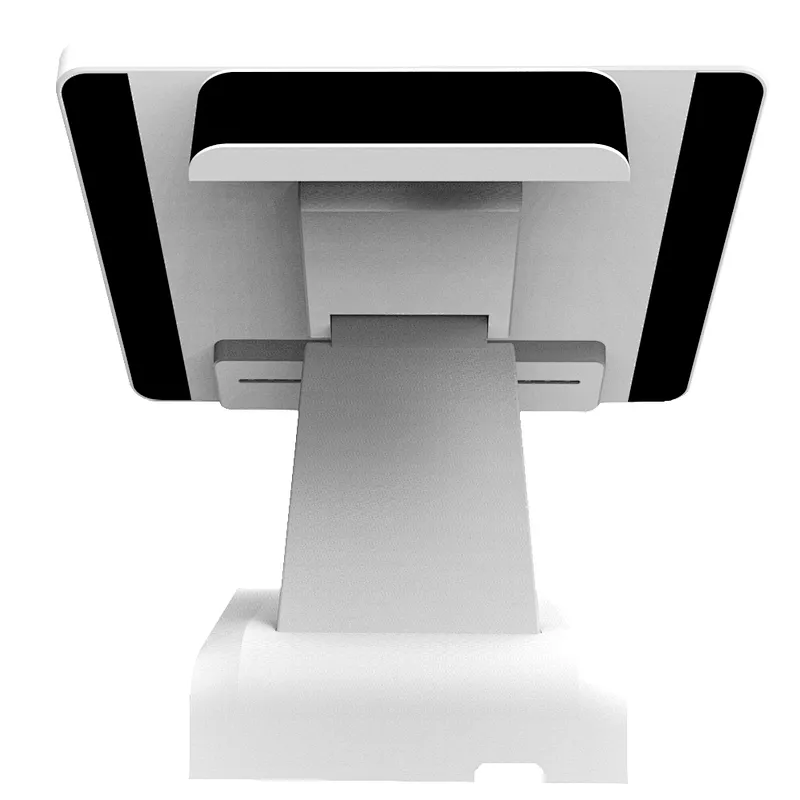

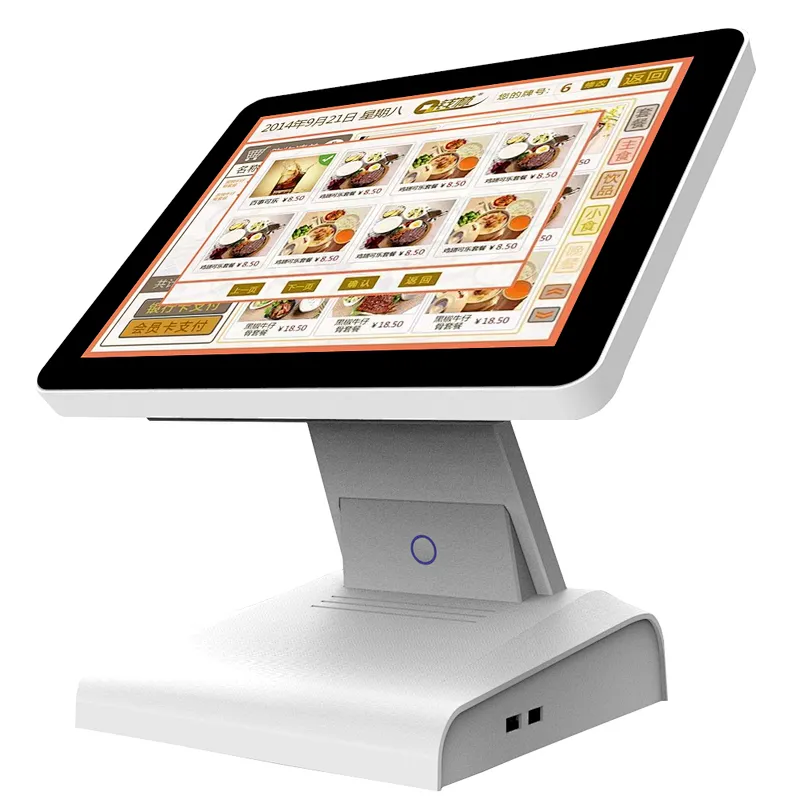

Windows pos touch system 15 inch all in one touch screen cash machine pos terminal

POS1566-B15-J19

15 inch all in one pos
1024*768 resolution
capacitive touchpanel
CPU:J1900(J3455, J1800, I3, I5 OEM)
RAM:4GB(8GB OEM)
SSD:32GB(64GB, 128GB OEM)

Delivery

EXW

minimum order

1 piece

Supply Ability

2000piece / Month

Country of Origin

China

Stock Time

7Day

CPU:

J1800

Size:

15 inch

RAM:

4GB

SSD:

32GB

Touch panel Type:

capacitive touch

Quantity:

US $182.00 - US $359.00 / piece

Contact Now

add to cart

windows pos touch system cash machine pos 15 inch

Model No.	POS1566-B150-J19
Main Board
CPU	Intel® Celeron® J1900,Quad-core, clock speed up to 2.58G, TDP 10W
Chipset	Intel Bay Trail-D
Motherboard	industrial motherboard Fanless
System Memory	Support DDR3L 1333 MHz, 4G up to 8GB
OS Support	Win 7,Win 8,win 10, Linux
Storage
SSD	Industrial 32G 64G 128G SSD or 500G HDD（2.5"SATA)
SATA Slot	1 * mSATA Slot
Display
LCD Panel	Industrial 15"TFT LED(12.1”, 15.6”, 17” optional)
Resolution	1024*768 (max) @ 60Hz
Brightness	300 cd/㎡

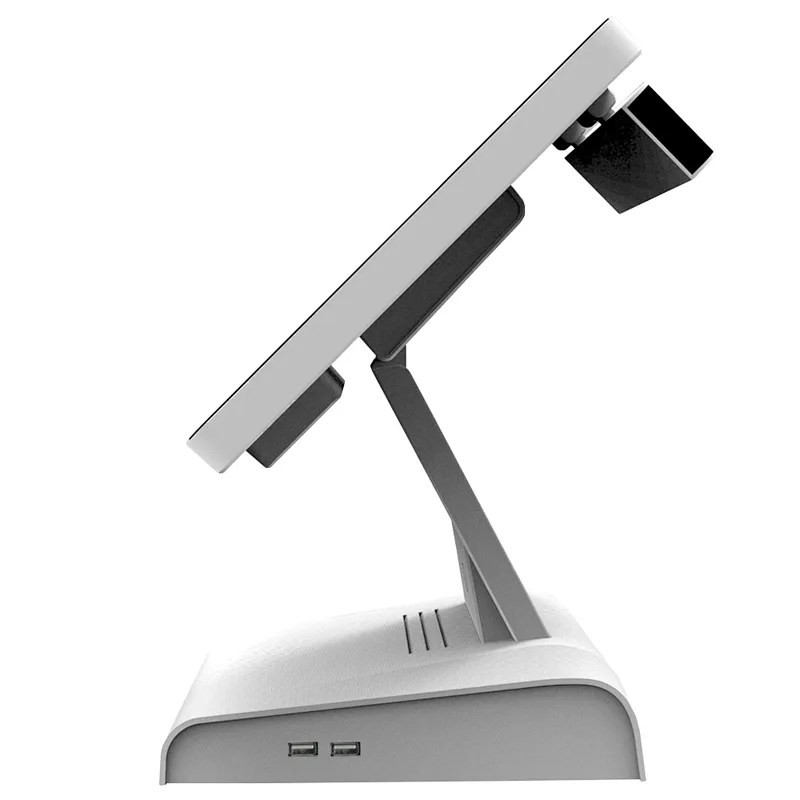

Ilting Angle	35-90 Degree
Touch Screen	All planar capacitive touch panel
I/O Ports
USB	USB2.04+USB3.02
Serial	1* COM（DB9)(5*COM optional)
LAN	1 * Realtek FE LAN chip (10/100/1000 Mbps)
VGA	1 * VGA（DB15）
Audio	ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports
DC	1 * DC Power Input
Environment
Power	DC 12V 5A
Operating Temperature	0℃ to 40℃
Storage Temperature	－20℃ to 60℃
Other Optional	12.1inch, 15Inch &15.6inch Second Display,Wifi, MSR optional

windows pos touch system

15 Inch Squarescreen 4:3

1024*768(max) Resolution

True Flat Touch Panel

10Point Capacitive Touch Panel
(5 Wire Resistive Optional)

cash machine pos 15 inch

CPU: Intel Celeron J1800, Dual-Core

RMA:Support DDR3L, 2GB(max 8GB)

SSD: Industrial 32GB, 64GB, 128GB

OS Support: Win 7/8/10, Linux
