pos square terminal

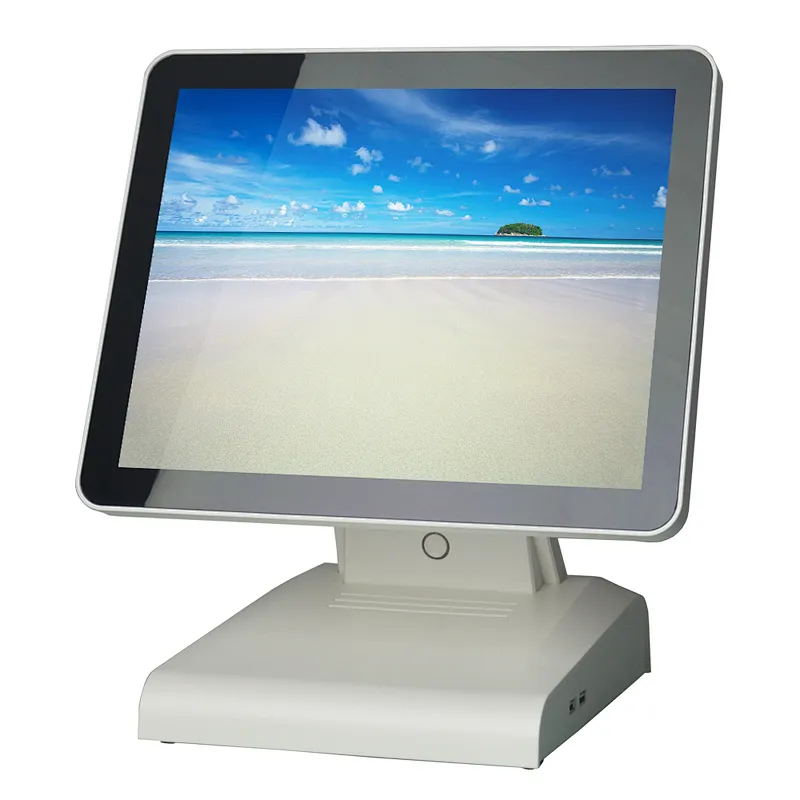

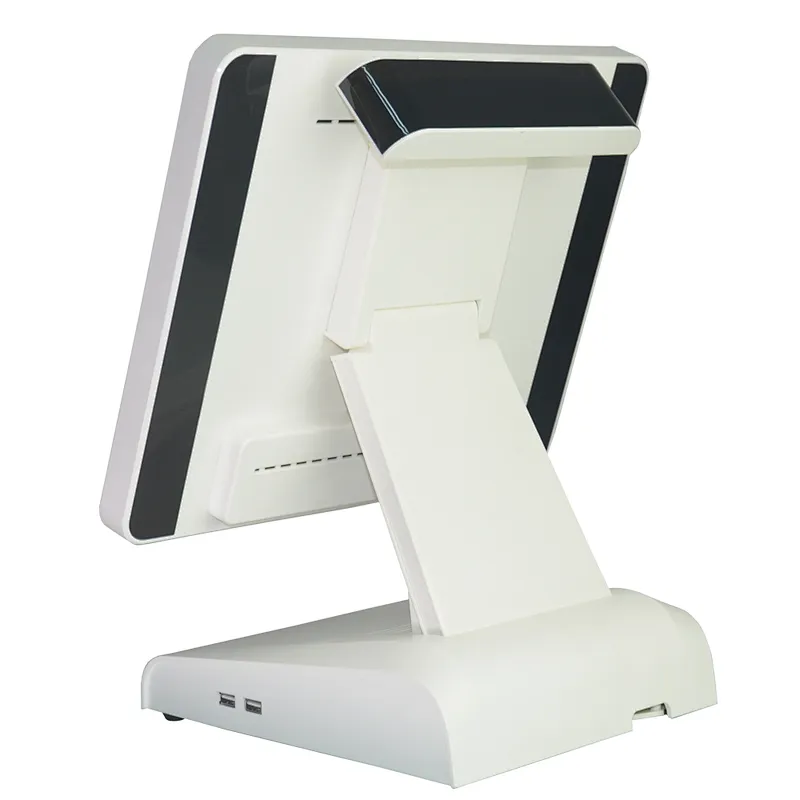

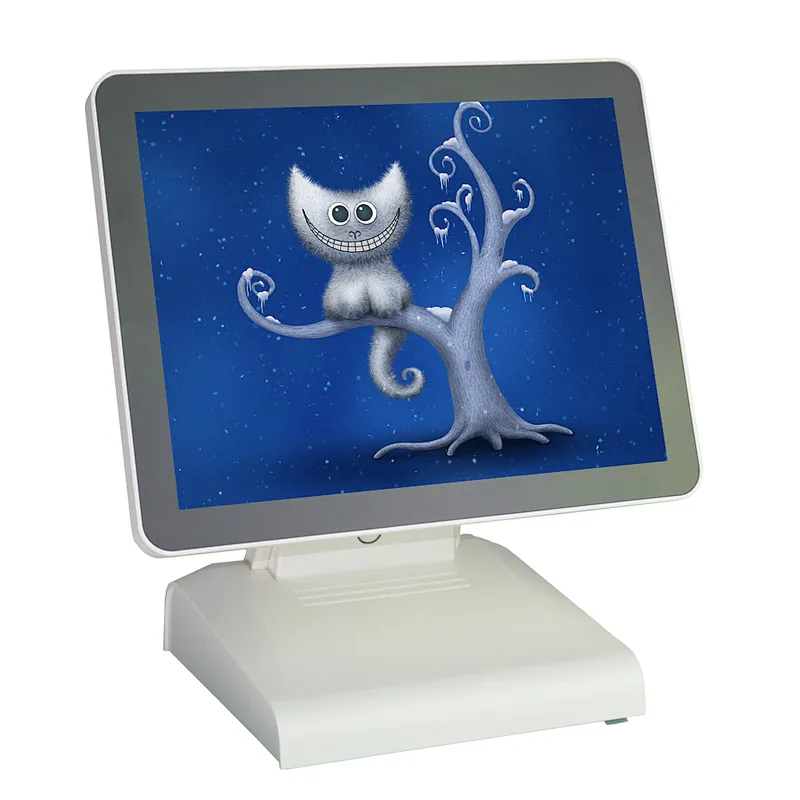

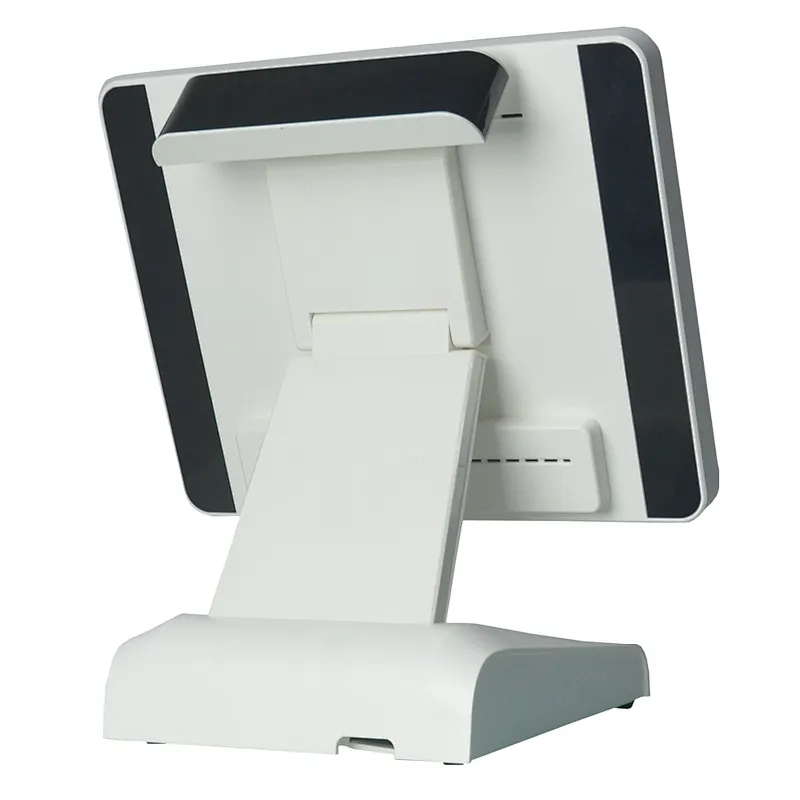

square pos touch terminal 15 inch all in one pos cash register touch screen

POS1566-B15-I5
15 inch all in one pos
1024*768 resolution
capacitive touchpanel
CPU:I5(J3455, J1800, J1900, I3 OEM)
RAM:4GB(8GB OEM)
SSD:32GB(64GB, 128GB OEM)
Delivery
EXW
minimum order
1 piece
Supply Ability
2000piece / Month
Country of Origin
China
Stock Time
7Day
Size:
15 inch
CPU:
I5
RAM:
4GB
8GB
SSD:
32GB
64GB
128GB
Touch panel Type:
capacitive touch
Quantity:
US $250.00 - US $385.00 / piece
Contact Now
add to cart

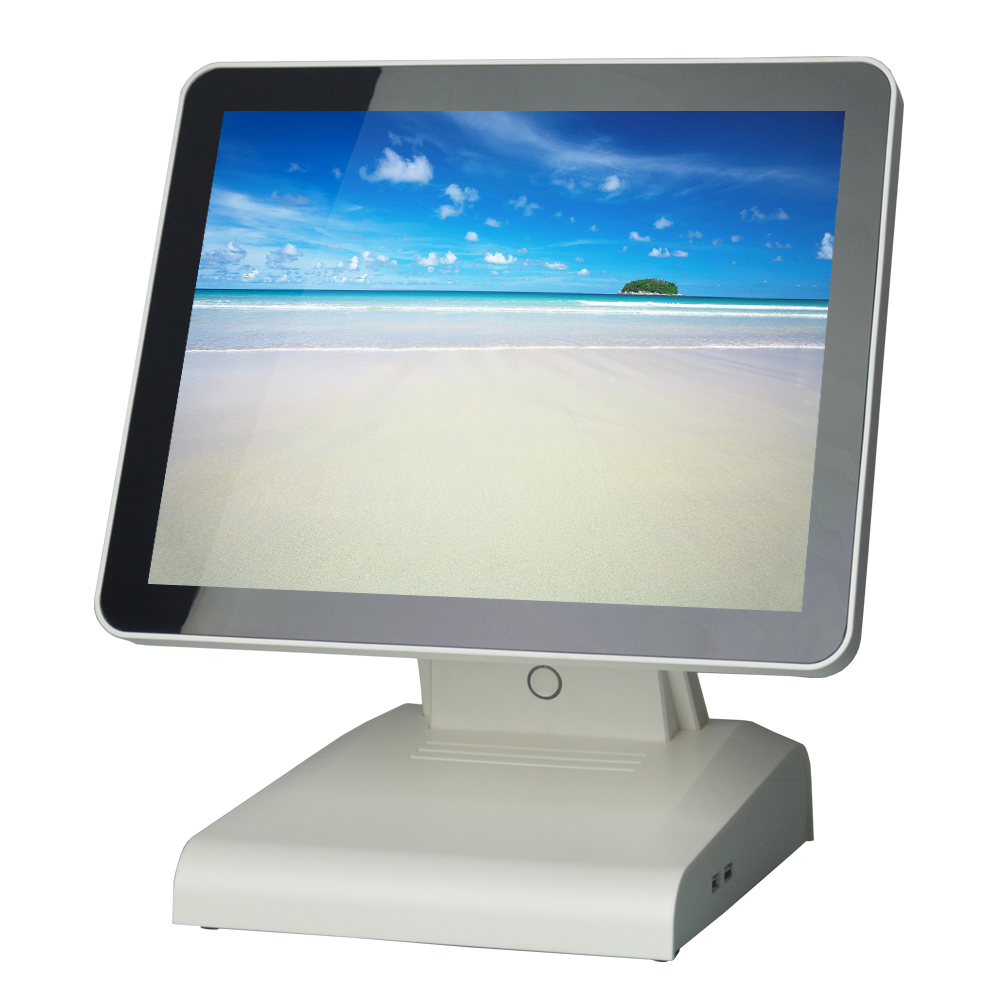

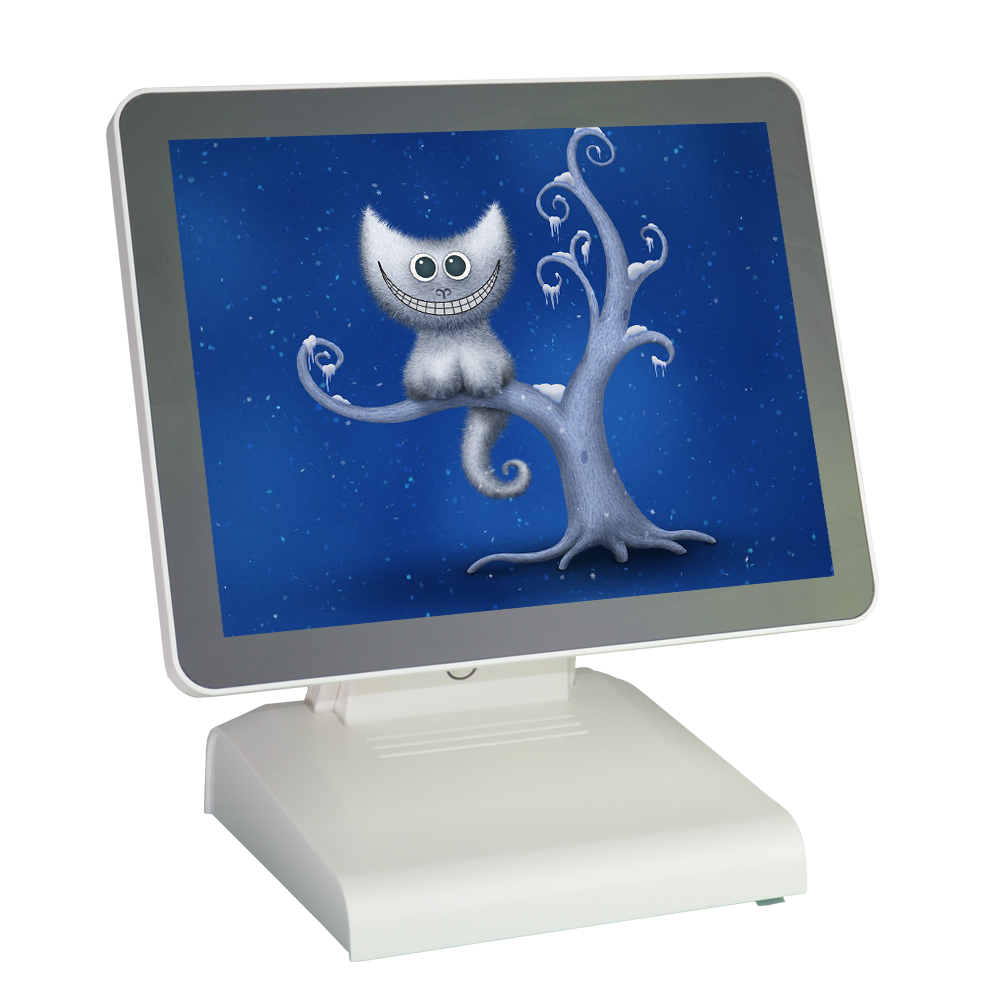

15 inch touch screen pos system
                          15 inch touch screen pos system i5
Model No.POS1566-B150-I5
Main Board       windows tablet pos square terminal for restaurants 15 inch touch screen pos system i5
CPUIntel® Core i5 Processor (3M Cache, 1.70 GHz)，17W
ChipsetIntel® HM77
MotherboardThe core CPU integrated HD display
System MemorySupport DDR3L 1333 MHz, 4G up to 8GB
OS SupportWin 7,Win 8,win 10, Linux
Storage
SSDIndustrial 32G 64G 128G SSD or 500G HDD（2.5"SATA)
SATA Slot1 * mSATA Slot
Display
LCD PanelIndustrial  15"TFT  LED(12.1”, 15.6”, 17” optional)
Resolution1024*768 (max) @ 60Hz
Brightness300 cd/㎡
Ilting Angle35-90 Degree
Touch ScreenAll planar capacitive touch panel
I/O Ports
USBUSB2.0*4+USB3.0*2
Serial1* COM（DB9)(5*COM optional)
LAN1 * Realtek FE LAN chip (10/100/1000 Mbps)
VGA1 * VGA（DB15）
AudioALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports
DC1 * DC Power Input
Environment
PowerDC 12V 5A
Operating Temperature0℃ to 40℃
Storage Temperature－20℃ to 60℃
Other Optional12.1inch, 15Inch &15.6inch Second Display,Wifi, MSR optional
15 inch touch screen pos system
15 inch touch screen pos system




windows tablet pos square terminal for restaurants


15 Inch Squarescreen 4:3

1024*768(max) Resolution

True Flat Touch Panel

10Point Capacitive Touch Panel
(5  Wire Resistive Optional)

windows tablet pos square terminal for restaurants 15 inch touch screen pos system i5

square pos touch terminal 15 inch all in one pos cash register touch screen








15 inch touch screen pos system i5


CPU: Intel Core I3, Quad-Core

RMA:Support DDR3L, 2GB(max 8GB)

SSD: Industrial 32GB, 64GB, 128GB

OS Support: Win 7/8/10, Linux

windows tablet pos square terminal for restaurants 15 inch touch screen pos system i5

square pos touch terminal 15 inch all in one pos cash register touch screen

15 inch touch screen pos system
 15 inch touch screen pos system
          windows tablet pos square terminal for restaurants
15 inch touch screen pos system
windows tablet pos square terminal for restaurants 15 inch touch screen pos system i5
15 inch touch screen pos system
          15 inch 15.6 inch windows tablet pos square terminal for restaurants
15 inch touch screen pos system
          15 inch touch screen pos system i5 support win7 8 10 Linux
15 inch touch screen pos system
               15 inch touch screen pos system i5 with multi interface
15 inch touch screen pos system
windows tablet pos square terminal for restaurants 15 inch touch screen pos system i5
