| Model No. | POS1528W-I3 |
| Main Board | |
| CPU | Intel® Core™ I3 Processor (3M Cache, 1.70 GHz)，17W |
| Chipset | Intel® HM77 |
| Motherboard | The core CPU integrated HD display |
| System Memory | DDRIII 1066/1333MHz 4GB,1*DIMM (max 8GB) |
| OS Support | Win 7,Win 8,win 10, Linux |
| Storage | |
| SSD | Industrial 32G 64G 128G SSD or 500G HDD（2.5"SATA) |
| SATA Slot | 1 * mSATA Slot |
| Display | |
| LCD Panel | Industrial 15.6"TFT LED(15” optional) |
| Resolution | 1366*768 (max) @ 60Hz(1920*1080 OEM) |
| Brightness | 300 cd/㎡ |
| Ilting Angle | 35-90 Degree |
| Touch Screen | All planar capacitive touch panel |
| I/O Ports | |
| USB | USB2.0*4+USB3.0*2 |
| Serial | 1* COM（DB9)(5*COM optional) |
| LAN | 1 * Realtek FE LAN chip (10/100/1000 Mbps) |
| VGA | 1 * VGA（DB15） |
| Audio | ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports |
| DC | 1 * DC Power Input |
| Environment | |
| Power | DC 12V 5A |
| Operating Temperature | 0℃ to 40℃ |
| Storage Temperature | －20℃ to 60℃ |
| Other Optional | 11.6inch, 12.1Inch &15.6inch Second Display,Wifi, MSR optional |
all in one touch screen pos machine
15.6” TFT LED Panel
1366*768(max)@60Hz
Ture Flat 5 Wire Resistive (Capacitive optional)
Sensistive Touch

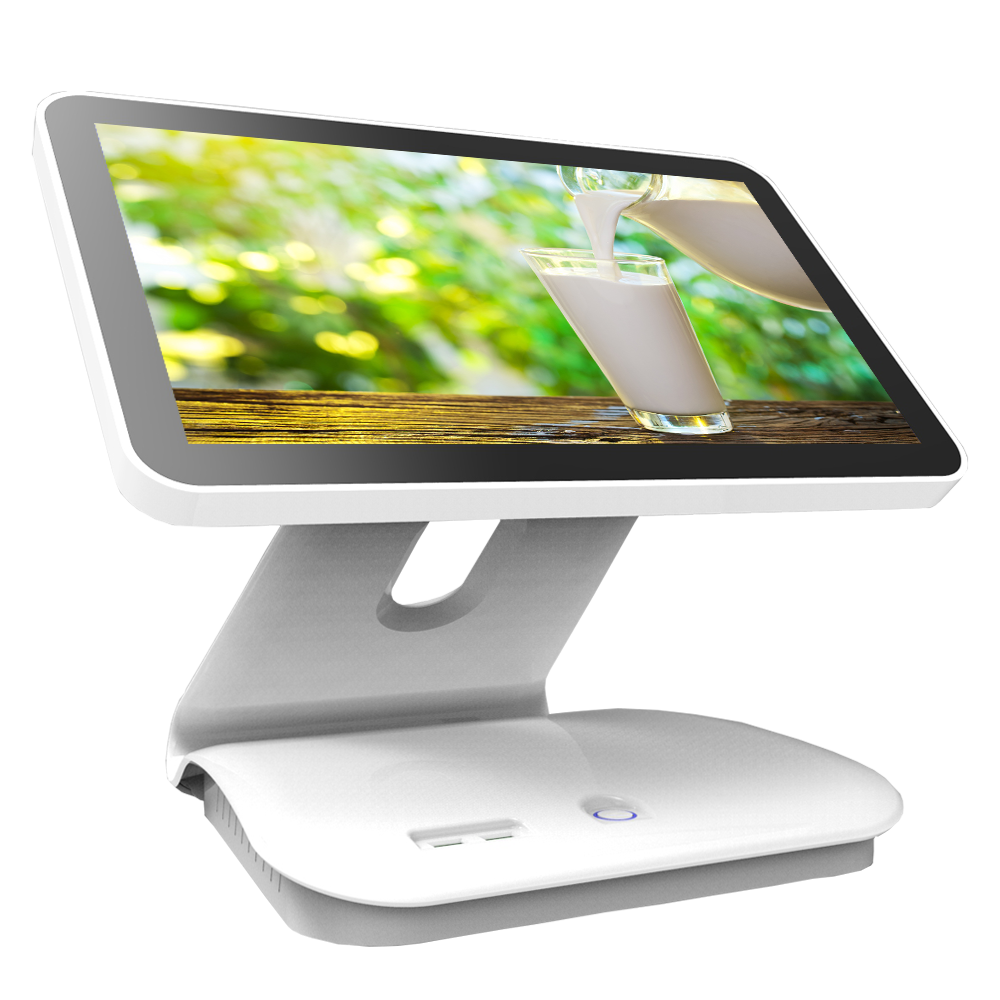

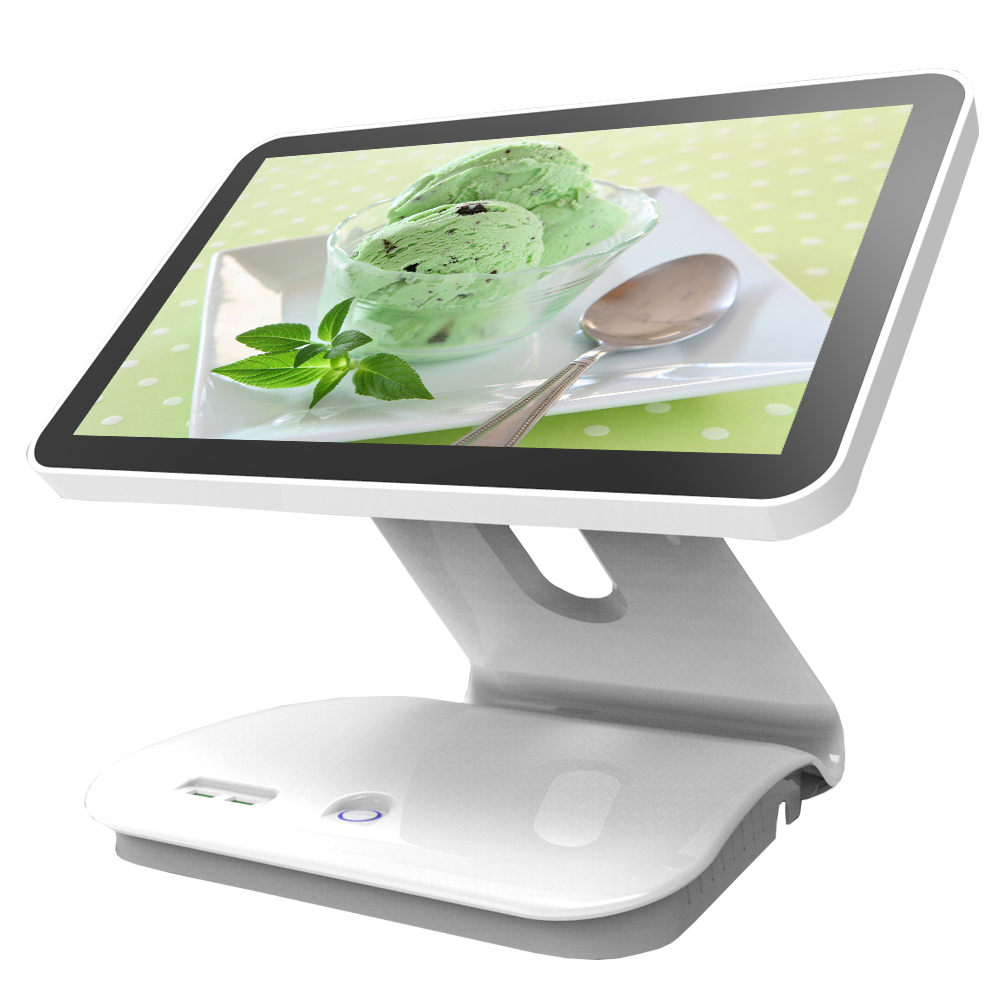

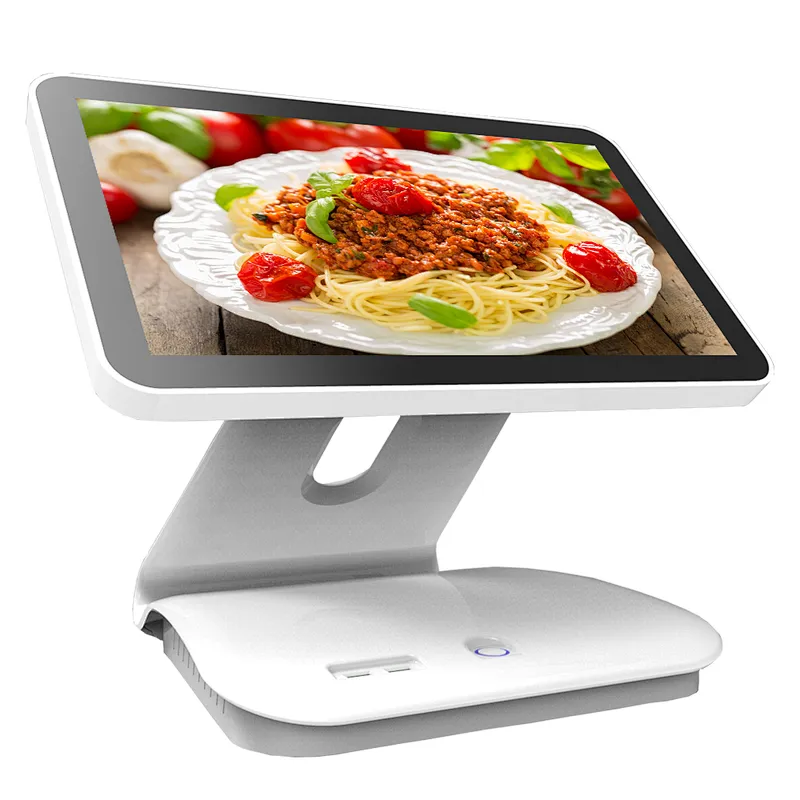

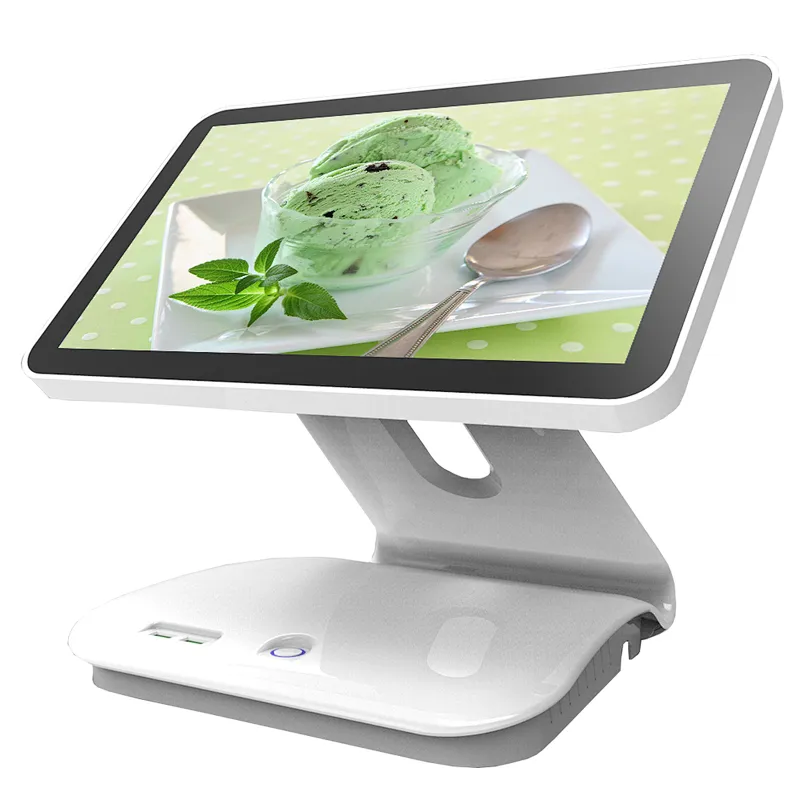

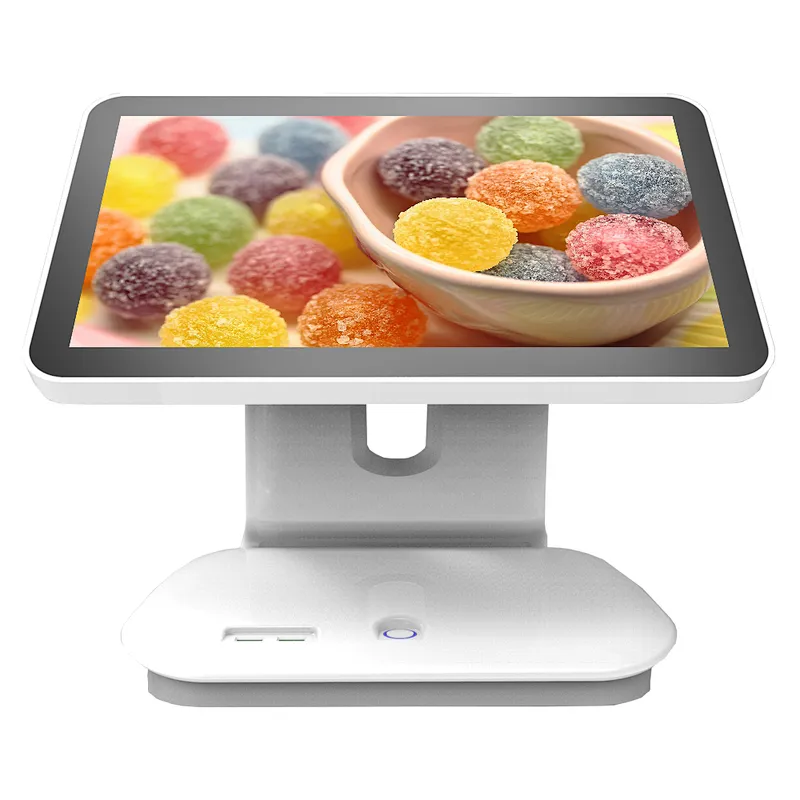

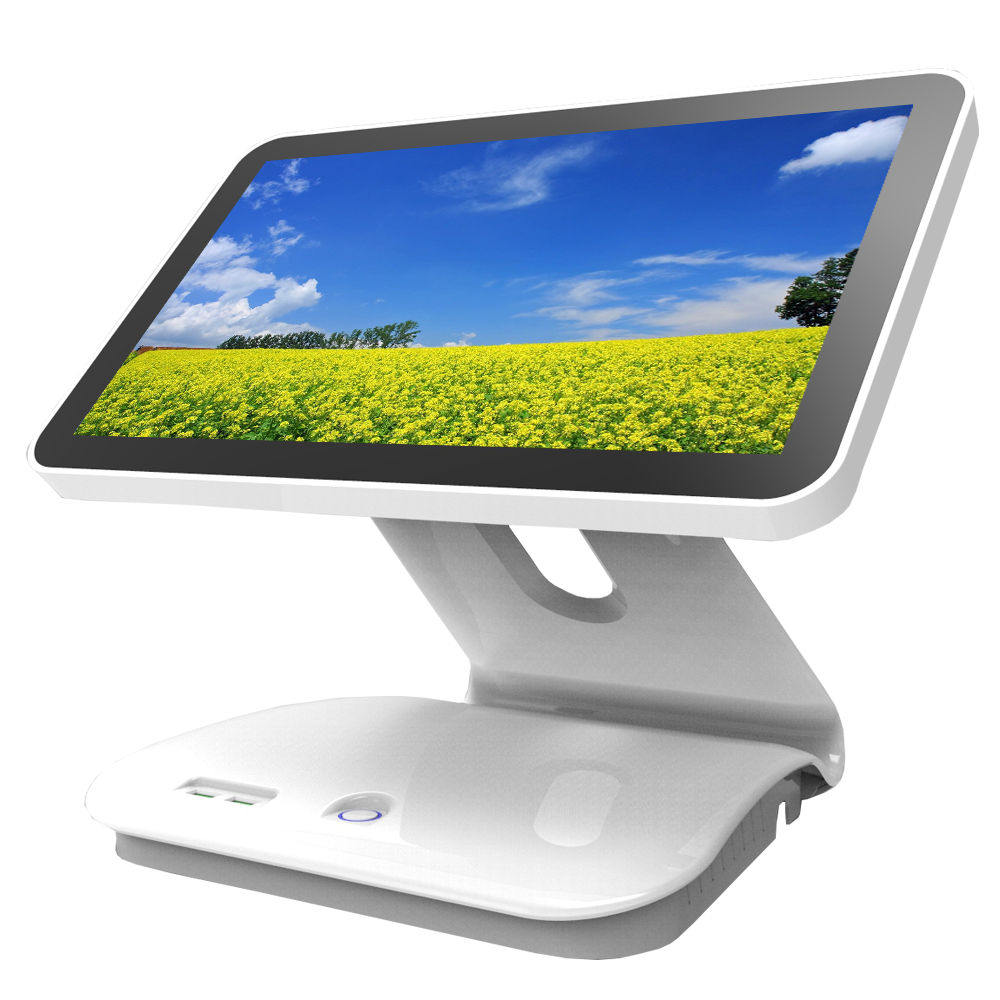

15.6 inch all in one touch screen pos machine
CPU:Intel Core I3
RMA: 4GB up to 8GB
Support Win7/8/10, Linux
The core CPU integrated HD display
all in one touch screen pos machine
VFD 220 Customer display
11.6 Inch, 12.1 Inch Second Display Optional
15.6 inch all in one touch screen pos machine with win 7 8 10 linux
white black color 15.6 inch all in one touch screen pos machine optional
all in one touch screen pos machine with multi interface
all in one touch screen pos machine used for most areas
