| Model No. | POS1528-J19 |
| Main Board | |
| CPU | Intel® Celeron® J1900, Quad-core, clock speed up to 2.58G,10W |
| Chipset | Intel Bay Trail-D |
| Motherboard | industrial motherboard Fanless |
| System Memory | DDRIII 1066/1333MHz 4GB,1*DIMM (max 8GB) |
| OS Support | Win 7,Win 8,win 10, Linux |
| Storage | |
| SSD | Industrial 32G 64G 128G SSD or 500G HDD（2.5"SATA) |
| SATA Slot | 1 * mSATA Slot |
| Display | |
| LCD Panel | Industrial 15"TFT LED(15.6” OEM) |
| Resolution | 1024*768 (max) @ 60Hz |
| Brightness | 300 cd/㎡ |
| Ilting Angle | 35-90 Degree |
| Touch Screen | All planar capacitive touch panel |
| I/O Ports | |
| USB | USB2.0*4+USB3.0*2 |
| Serial | 1* COM（DB9)(5*COM optional) |
| LAN | 1 * Realtek FE LAN chip (10/100/1000 Mbps) |
| VGA | 1 * VGA（DB15） |
| Audio | ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports |
| DC | 1 * DC Power Input |
| Environment | |
| Power | DC 12V 5A |
| Operating Temperature | 0℃ to 40℃ |
| Storage Temperature | －20℃ to 60℃ |
| Other Optional | 11.6inch, 12.1Inch &15.6inch Second Display,Wifi, MSR optional |

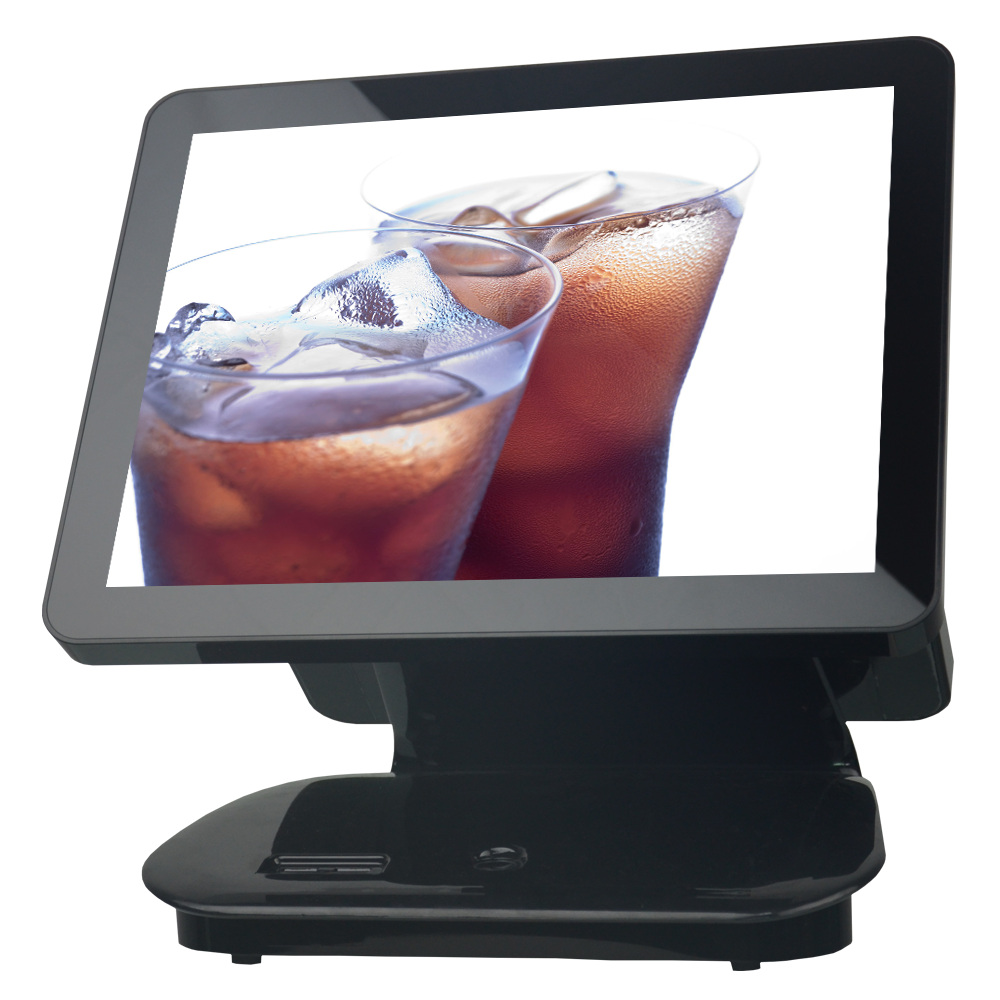

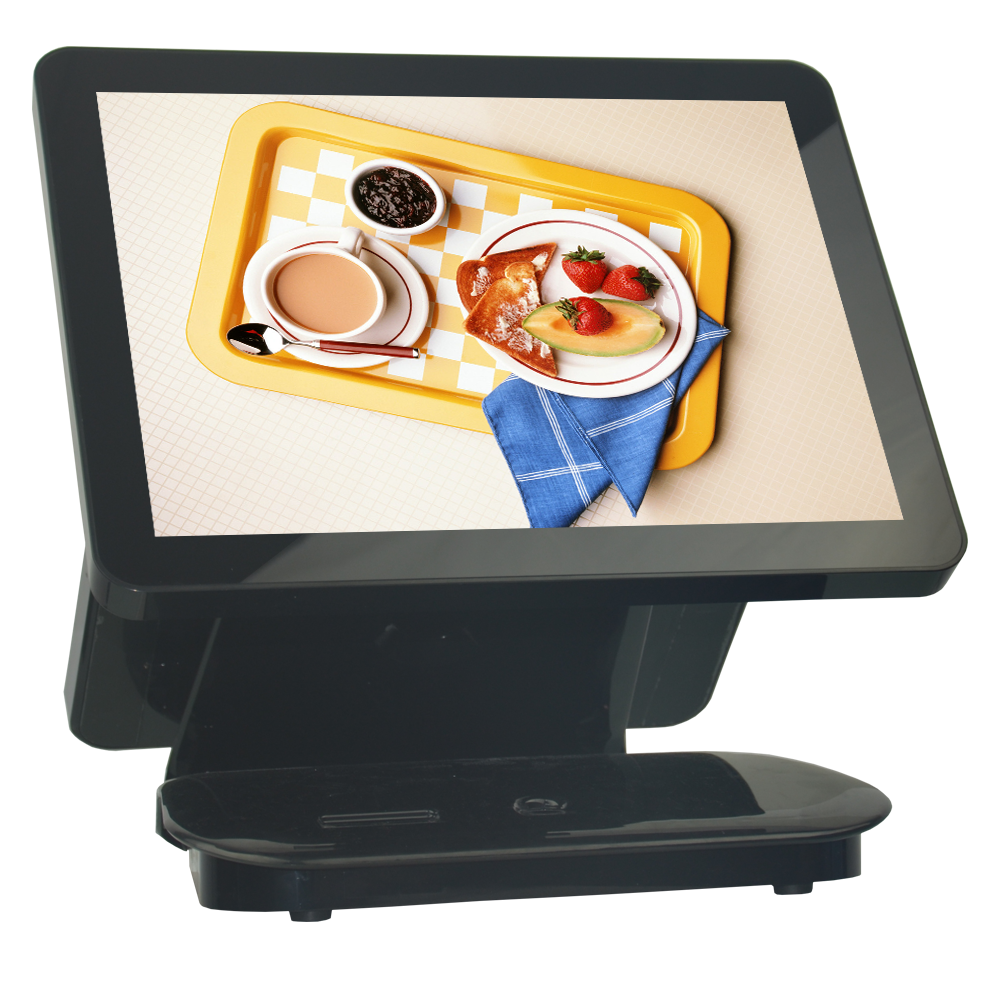

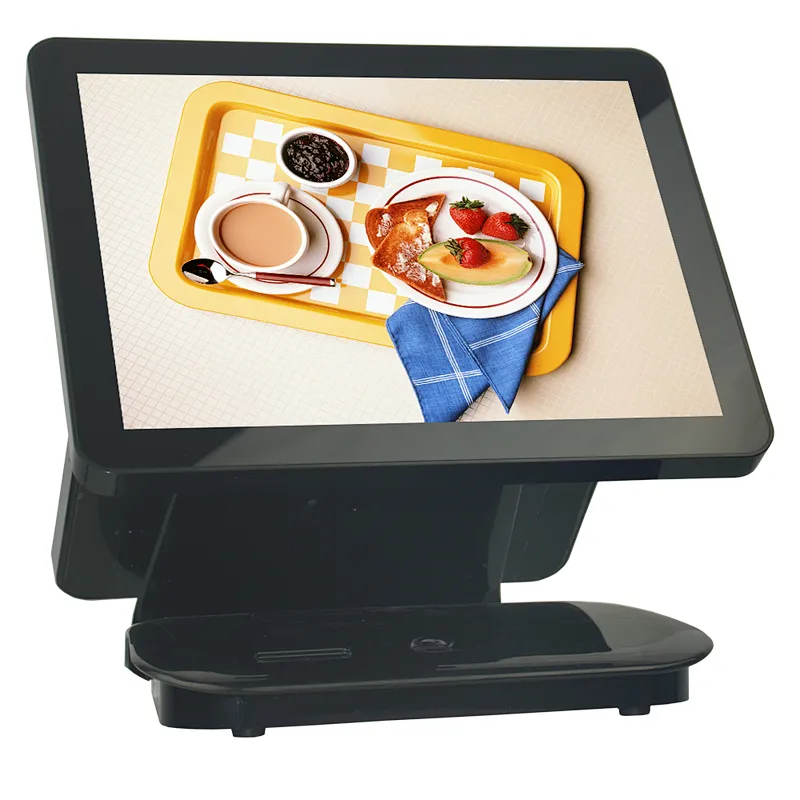

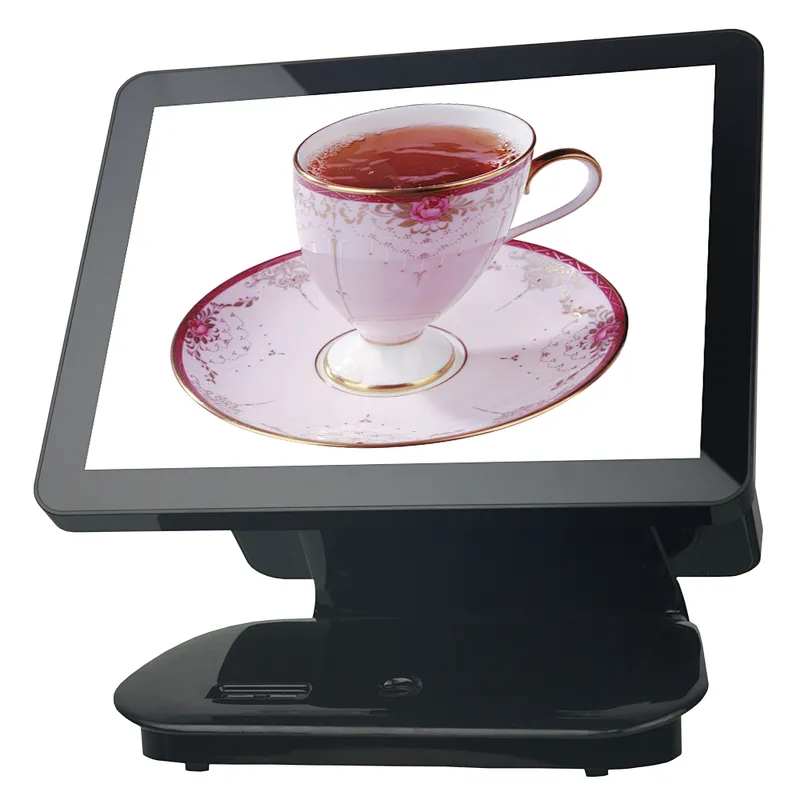

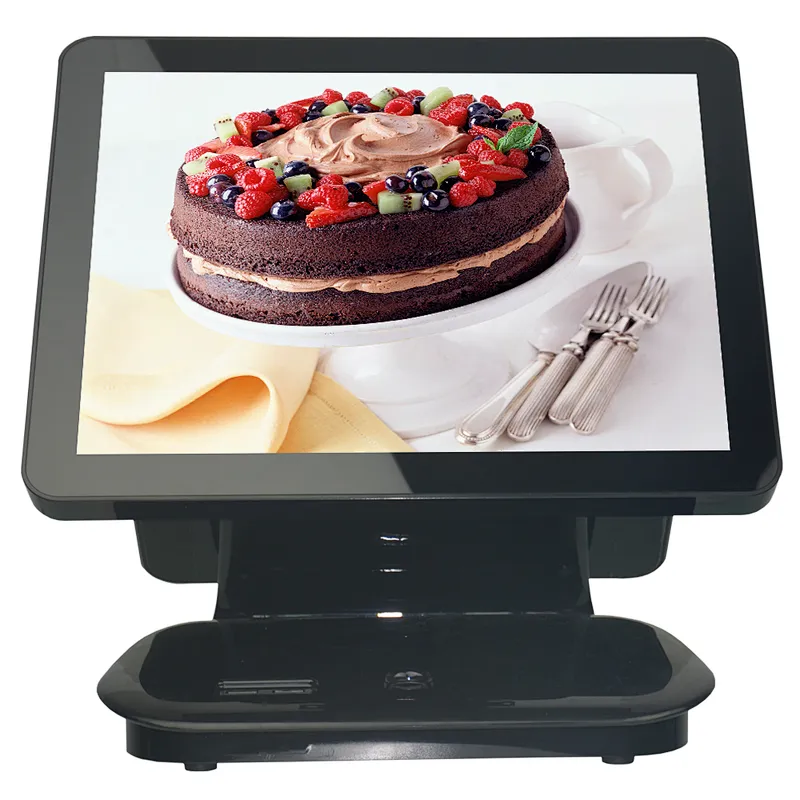

windows 10 pos terminal 15 inch
15” TFT LED Panel
1024*768(max)@60Hz
Ture Flat CapacitiveTouch
(5 Wire Resistive OEM)
Sensistive Touch
windows 10 pos terminal 15 inch
CPU:Intel Celeron J1900
RMA: 4GB up to 8GB
Support Win7/8/10, Linux
industrial motherboard Fanless

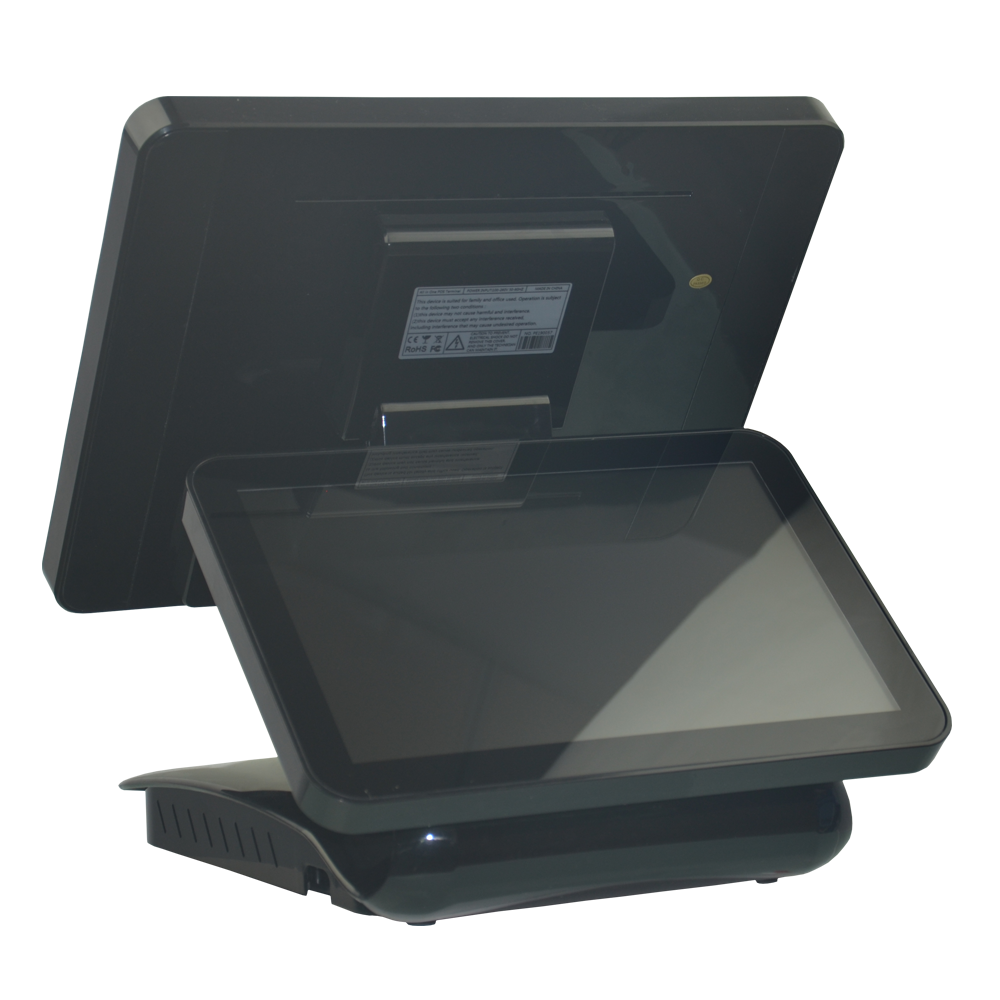

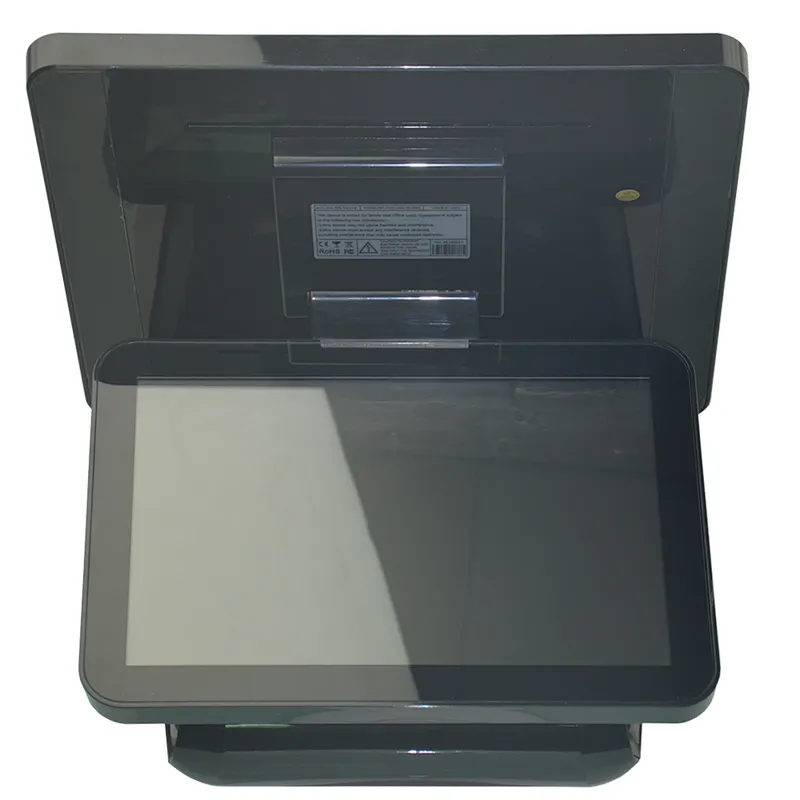

cash register pos dual monitor
with 12.1inch Second Display
VFD 220 Customer display
or 11.6 Inch Second Display Optional
cash register pos dual monitor 15inch windows 10 pos terminal 15 inch
cash register pos dual monitor 15inch windows 10 pos terminal 15 inch
cash register pos dual monitor 15inch windows 10 pos terminal 15 inch
cash register pos dual monitor 15inch windows 10 pos terminal 15 inch
cash register pos dual monitor 15inch windows 10 pos terminal 15 inch
cash register pos dual monitor windows 10 pos terminal 15 inch uesed most areas
