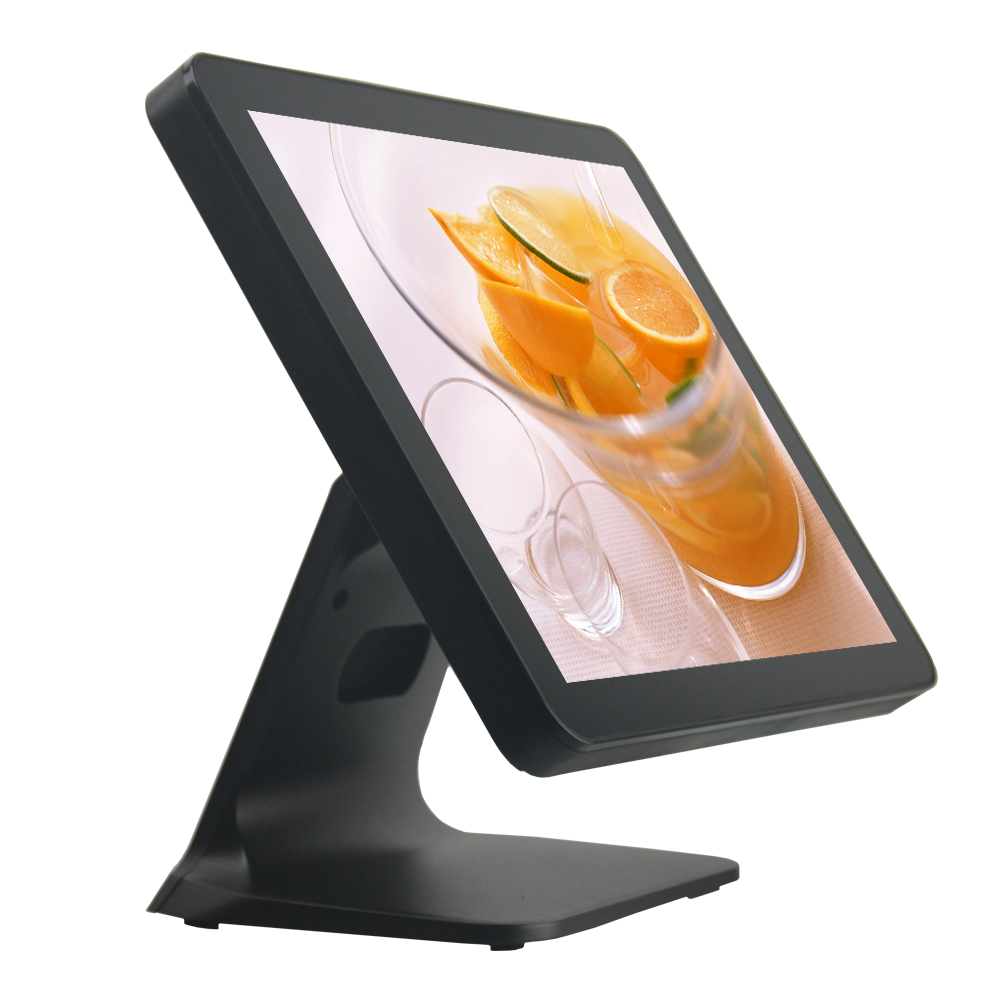

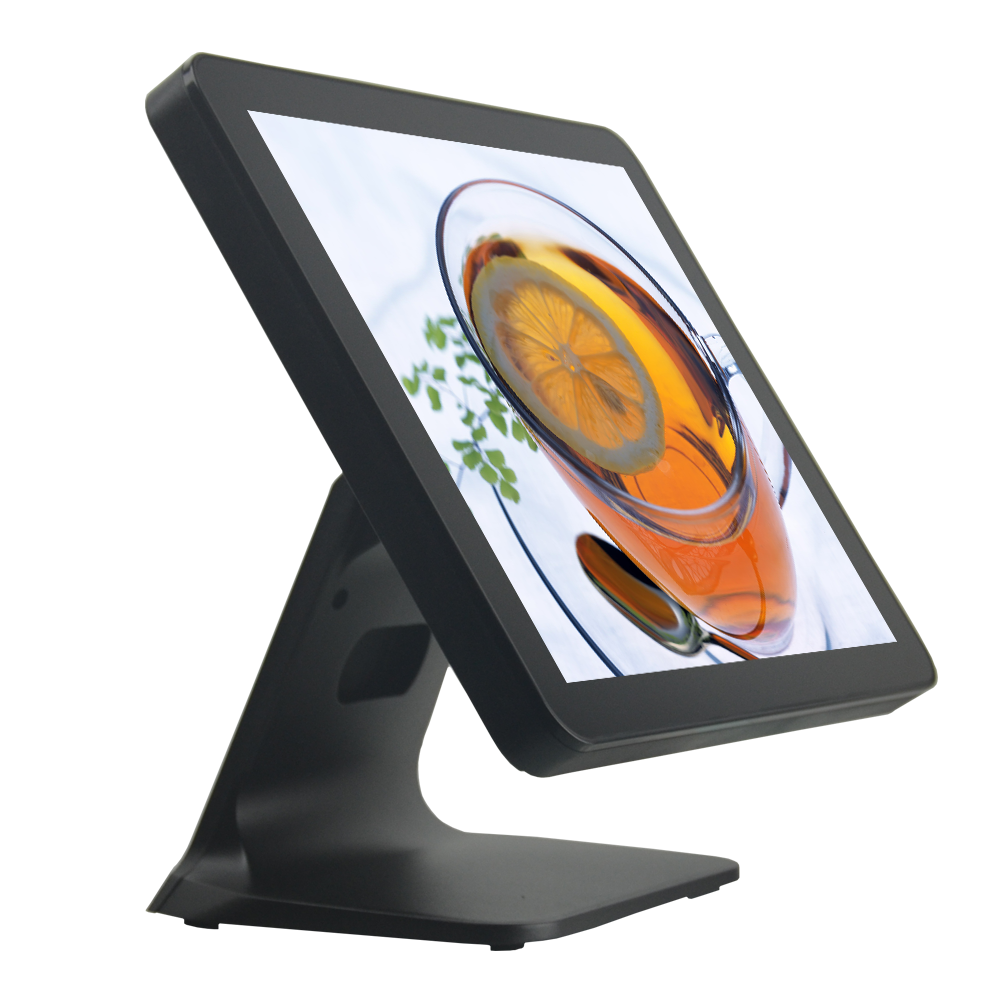

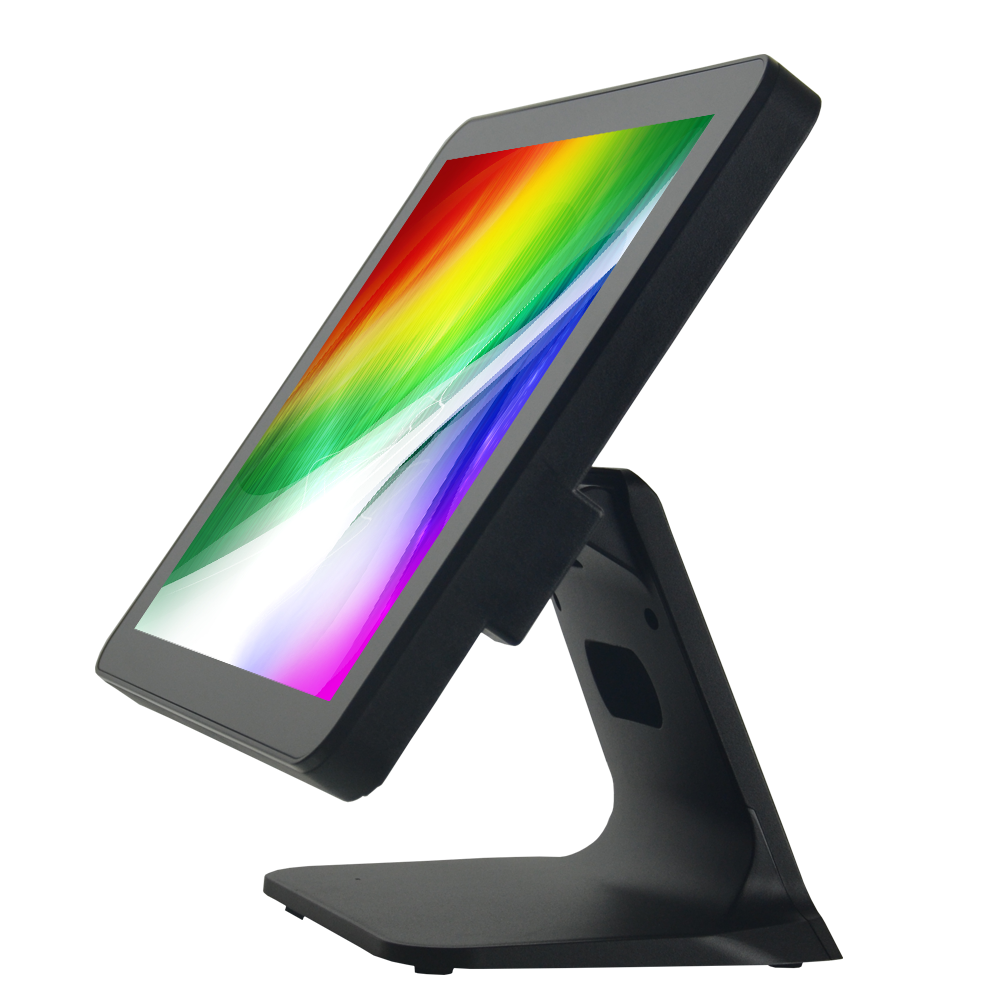

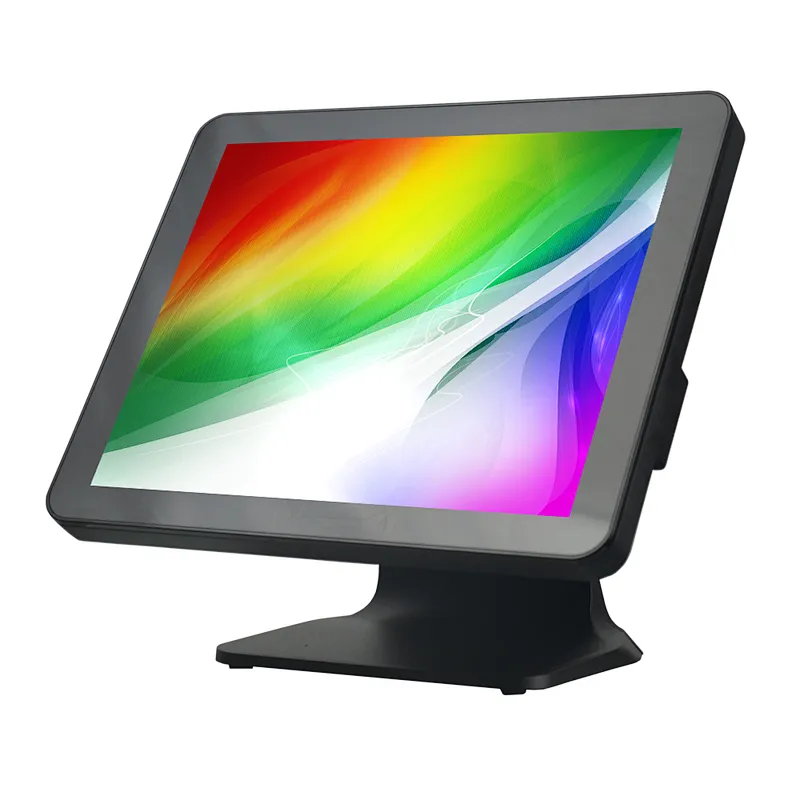

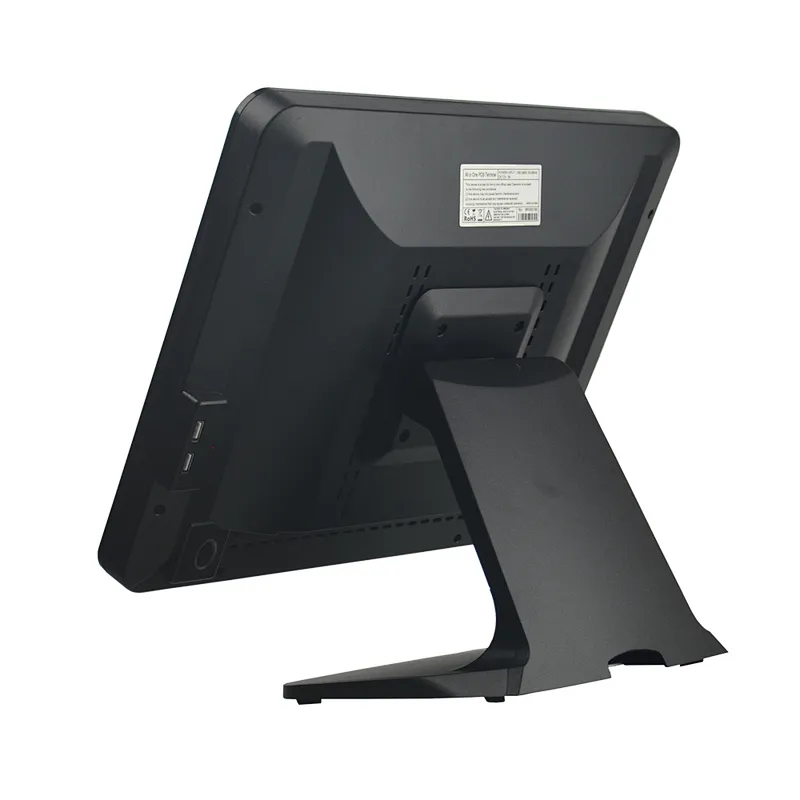

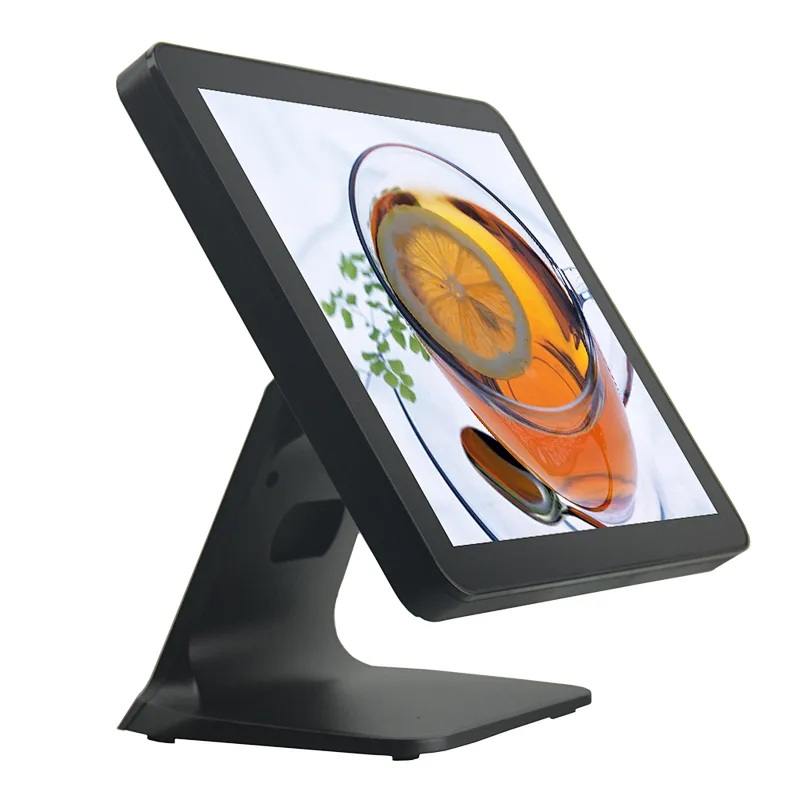

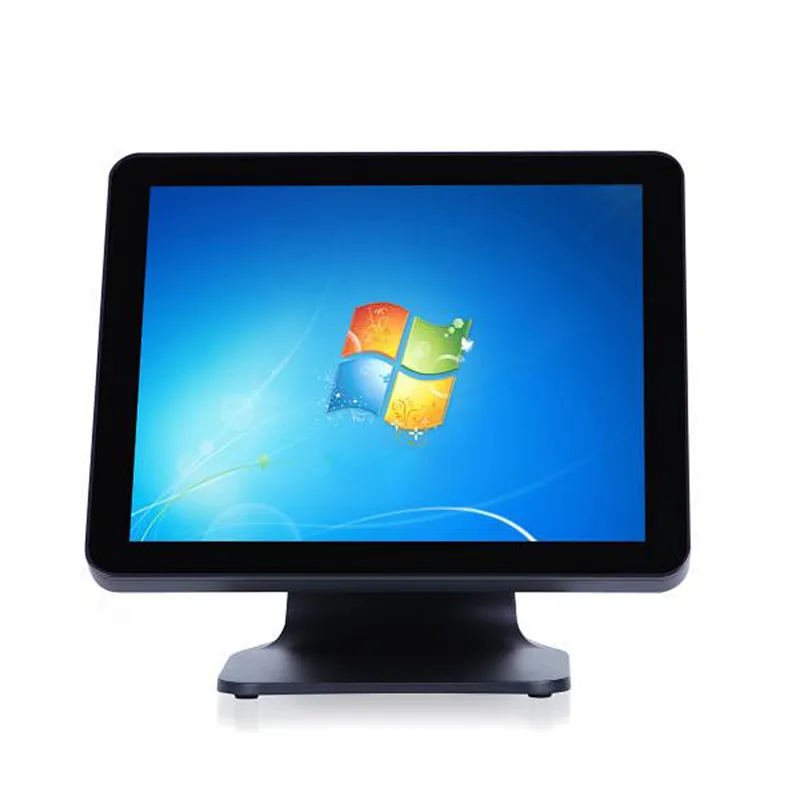

17 inch touch cash register windows pos system machine
17 inch touch cash register windows pos system machine
s
squarecash register system 17 inch touch cash register with multi interface
square cash register system 17 inch windows pos system machine support win 7 8 10, linux
| Model No. | POS1568-B170-I3 touch cash register square cash register system |
| Main Board | |
| CPU | Intel® Core™ i3-4010U Processor (3M Cache, 1.70 GHz)，17W |
| Chipset | Intel® HM77 |
| Motherboard | The core CPU integrated HD display |
| System Memory | Support DDR3L 1333 MHz, 4G( up to 8GB) |
| OS Support | Win 7,Win 8,win 10, Linux |
| Storage ouch cash register square cash register system | |
| SSD | Industrial 32G 64G 128G SSD or 500G HDD（2.5"SATA) |
| SATA Slot | 1 * mSATA Slot |
| Display touch cash register | |
| LCD Panel | Industrial 17"TFT LED(12.1”, 15", 15.6”optional) |
| Resolution | 1280*1024 (max) @ 60Hz |
| Brightness | 300 cd/㎡ |
| Ilting Angle | 35-90 Degree |
| Touch Screen | All planar capacitive touch panel |
| I/O Ports touch cash register 17 inch windows pos system machine | |
| USB | USB2.0*4+USB3.0*2 |
| Serial | 1* COM（DB9)(5*COM optional) |
| LAN | 1 * Realtek FE LAN chip (10/100/1000 Mbps) |
| VGA | 1 * VGA（DB15） |
| Audio | ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports |
| DC | 1 * DC Power Input |
| Environment | |
| Power | DC 12V 5A |
| Operating Temperature | 0℃ to 40℃ |
| Storage Temperature | －20℃ to 60℃ |
| Other Optional | 12.1inch, 15Inch Second Display,Wifi, MSR optional |
touch cash register square cash register system
Industrial 17” TFT LED Panel
1280*1024(max) Resolution
True Flat capacitive touch
Sensistive Touch
High Cost Performance
square cash register system 17 inch windows pos system machine
17 inch windows pos system machine
Intel Celeron J1900, Four nuclear
Support DDR3L, 4GB up to 8GB
Industrial Motherboard Fanless
Support Win7/8/10, Linux
Support OEM/ODM
square cash register system 17 inch windows pos system machine
ssquarecash register system 17 inch touch cash register with multi interface
square cash register system 17 inch windows pos system machine support win 7 8 10, linux
square cash register system 17 inch windows pos system machine widely used application , such as supermarket, shopping mall, store....
