| Model No. | POS1518W-J19 |
| Main Board tablet pos with printer 15.6 inch tablet pos system windows | |
| CPU | Intel® Celeron® J1900,Quad-core, clock speed up to 2.58G, TDP 10W |
| Chipset | Intel Bay Trail-D |
| Motherboard | industrial motherboard Fanless |
| System Memory | Support DDR3L 1333 MHz, 4G up to 8GB |
| OS Support | Win 7,Win 8,win 10, Linux |
| Storage tablet pos with printer 15.6 inch tablet pos system windows | |
| SSD | Industrial 32G 64G 128G SSD or 500G HDD（2.5"SATA) |
| SATA Slot | 1 * mSATA Slot |
| Display | |
| LCD Panel | Industrial 15.6"TFT LED(12.1”, 15.6”, 17” optional) |
| Resolution | 1366*768 (max) @ 60Hz(1920*1080 OEM) |
| Brightness | 300 cd/㎡ |
| Ilting Angle | 35-90 Degree |
| Touch Screen | All planar capacitive touch panel |
| I/O Ports | |
| USB | USB2.0*4+USB3.0*2 |
| Serial | 1* COM（DB9)(5*COM optional) |
| LAN | 1 * Realtek FE LAN chip (10/100/1000 Mbps) |
| VGA | 1 * VGA（DB15） |
| Audio | ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports |
| DC | 1 * DC Power Input |
| Environment | |
| Power | DC 12V 5A |
| Operating Temperature | 0℃ to 40℃ |
| Storage Temperature | －20℃ to 60℃ |
| Other Optional | 12.1inch, 15Inch &15.6inch Second Display,Wifi, MSR , Printer optional |
tablet pos system windows
LCD Panel: Industrial 15.6"TFT LED
Resolution: 1366*768(max)@60Hz
Touch Panel: Capacitive touch
Sensistive Touch

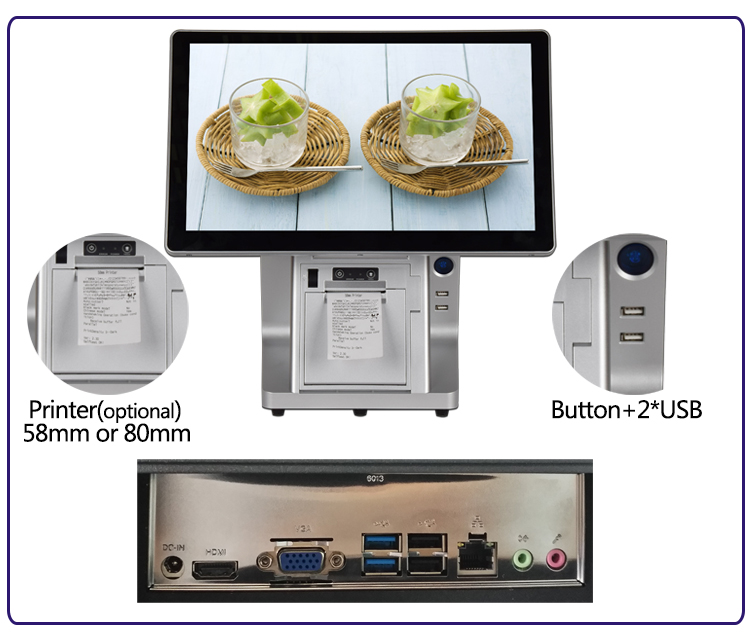

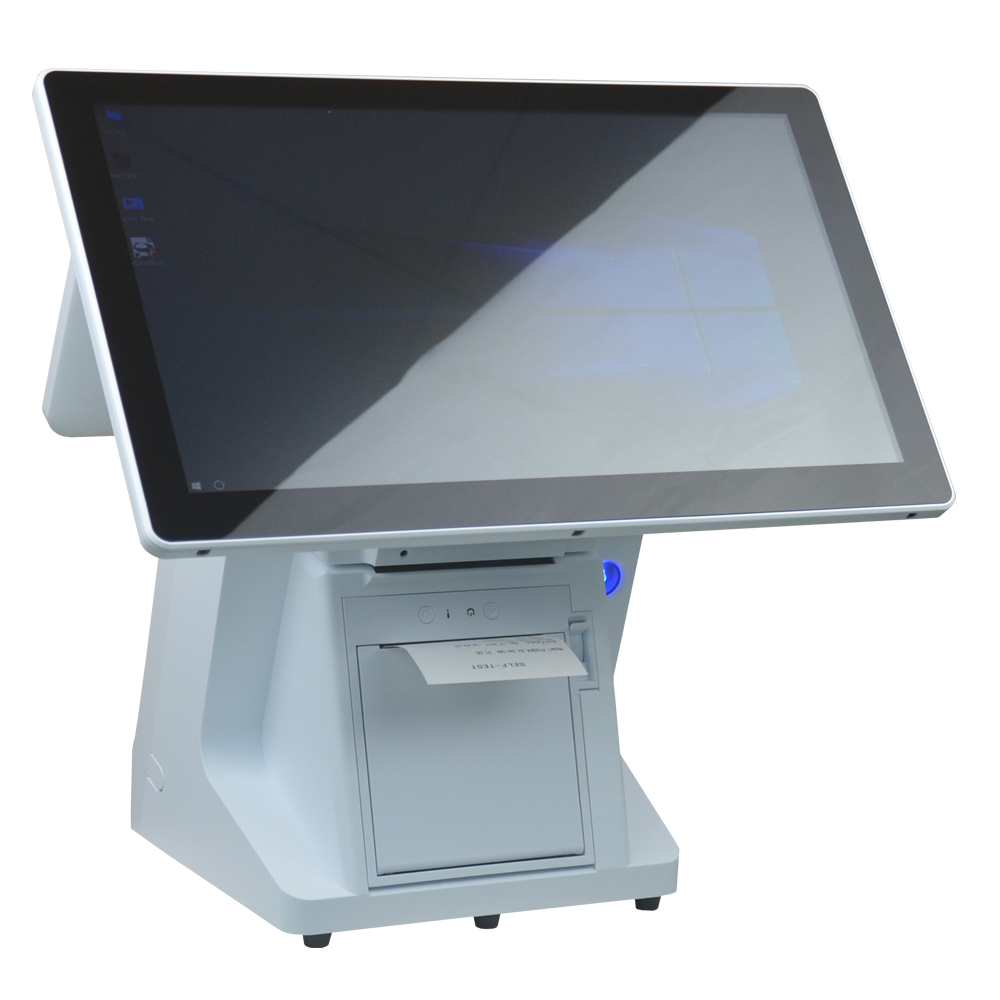

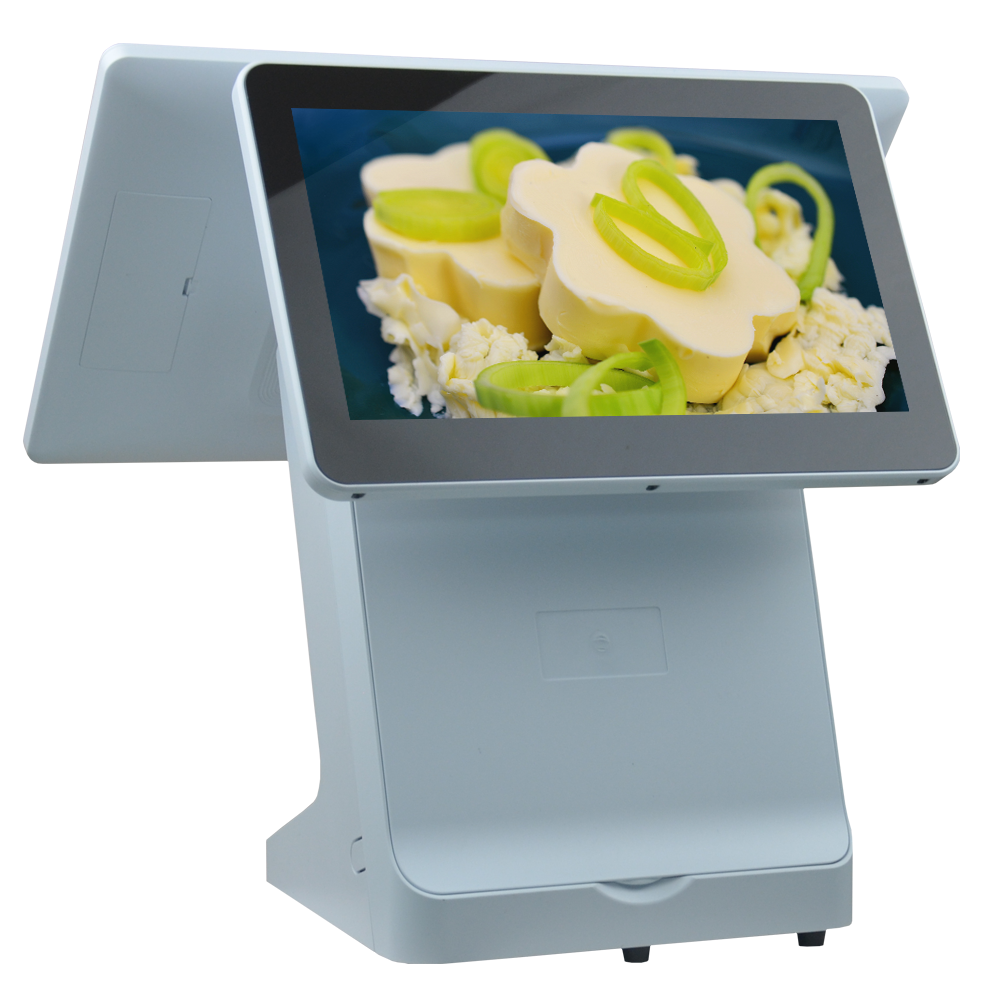

15.6 inch tablet pos with printer
CPU: Intel Celeron J1900
Memory: Support DDR3L, 4GB up to 8GB
OS Support: Win7 /8 /10, Linux
industrial motherboard Fanless

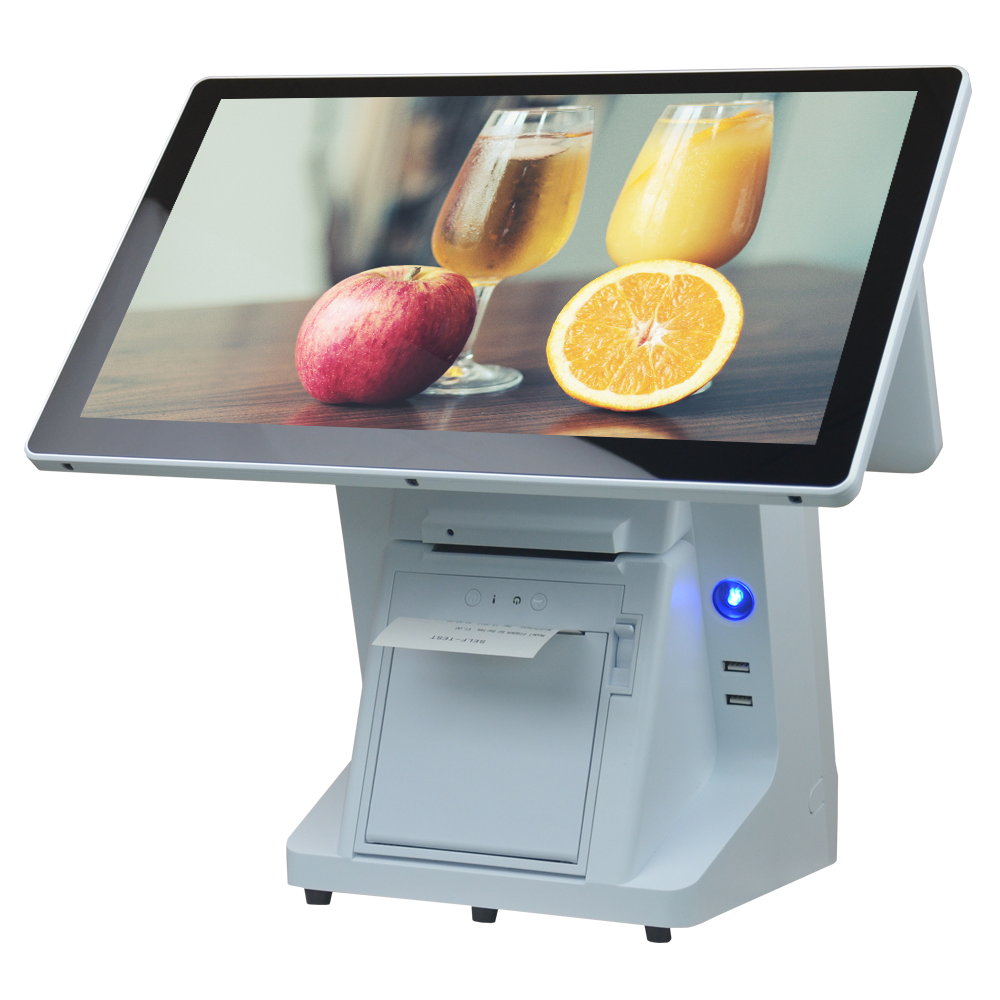

tablet pos with printer 15.6 inch tablet pos system windows

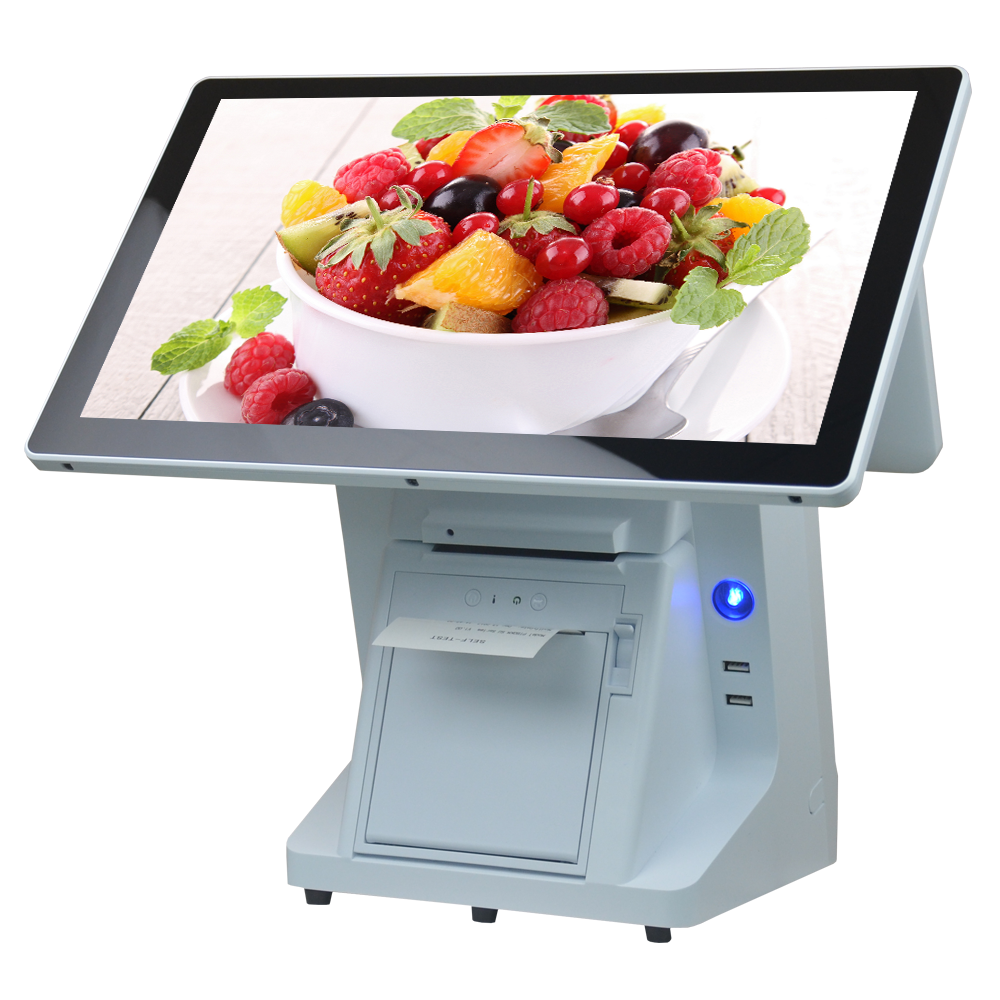

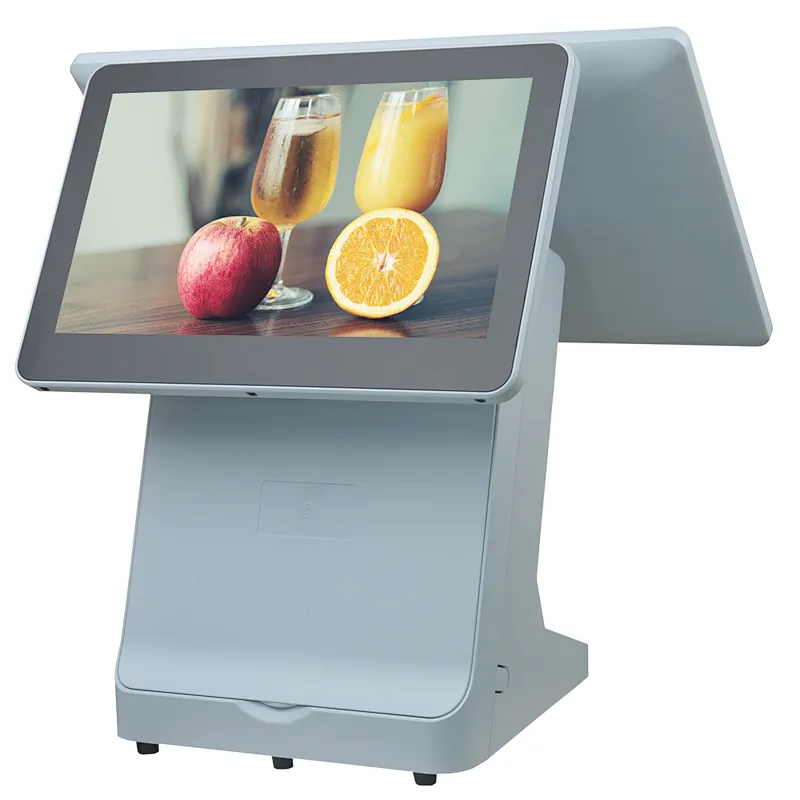

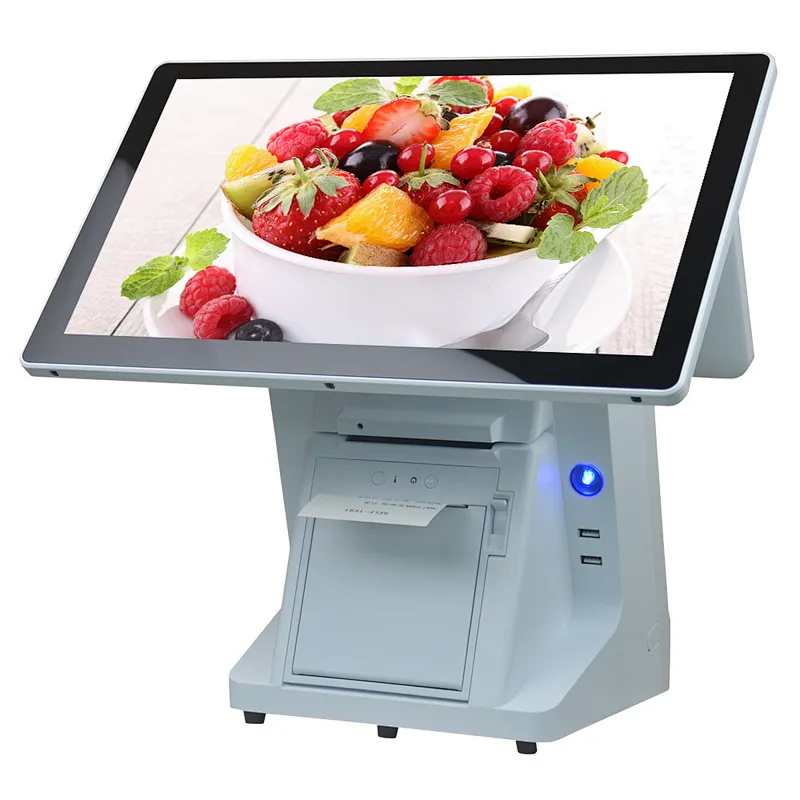

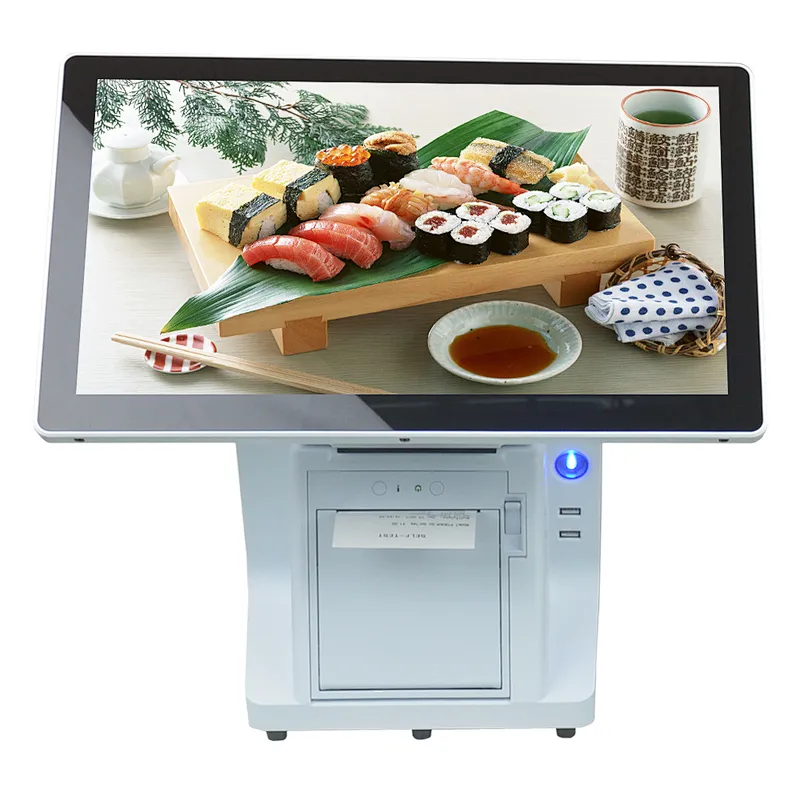

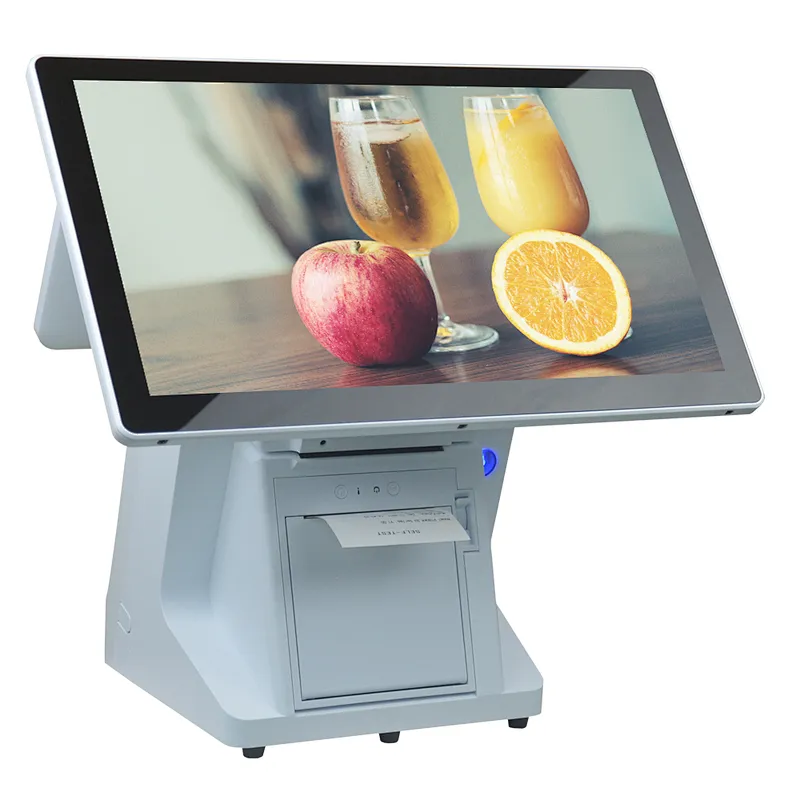

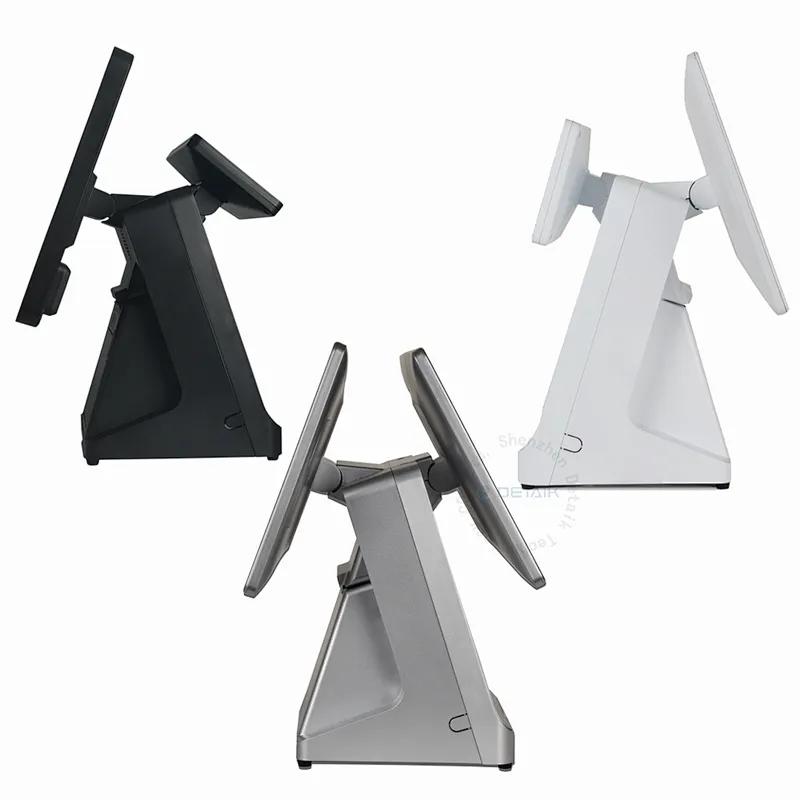

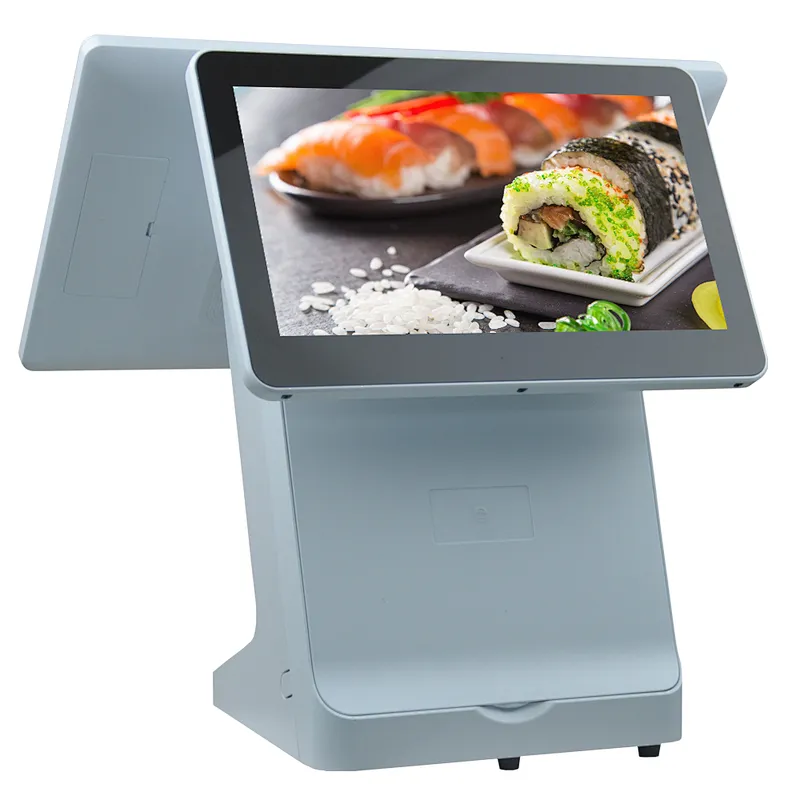

Double screen 15.6 inch tablet pos with printer
with 11.6 Inch Second Display

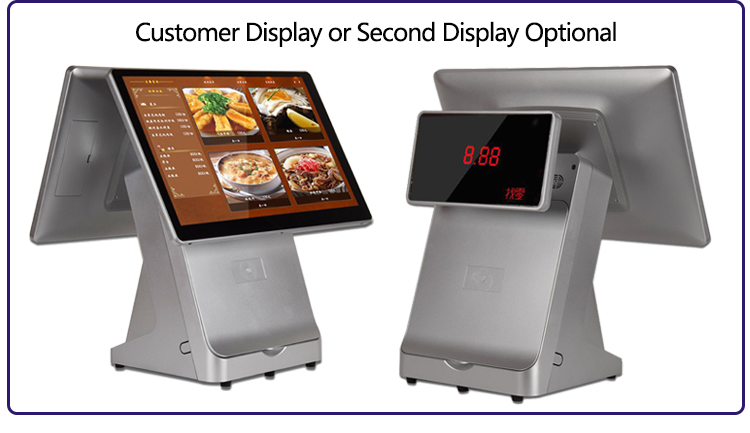

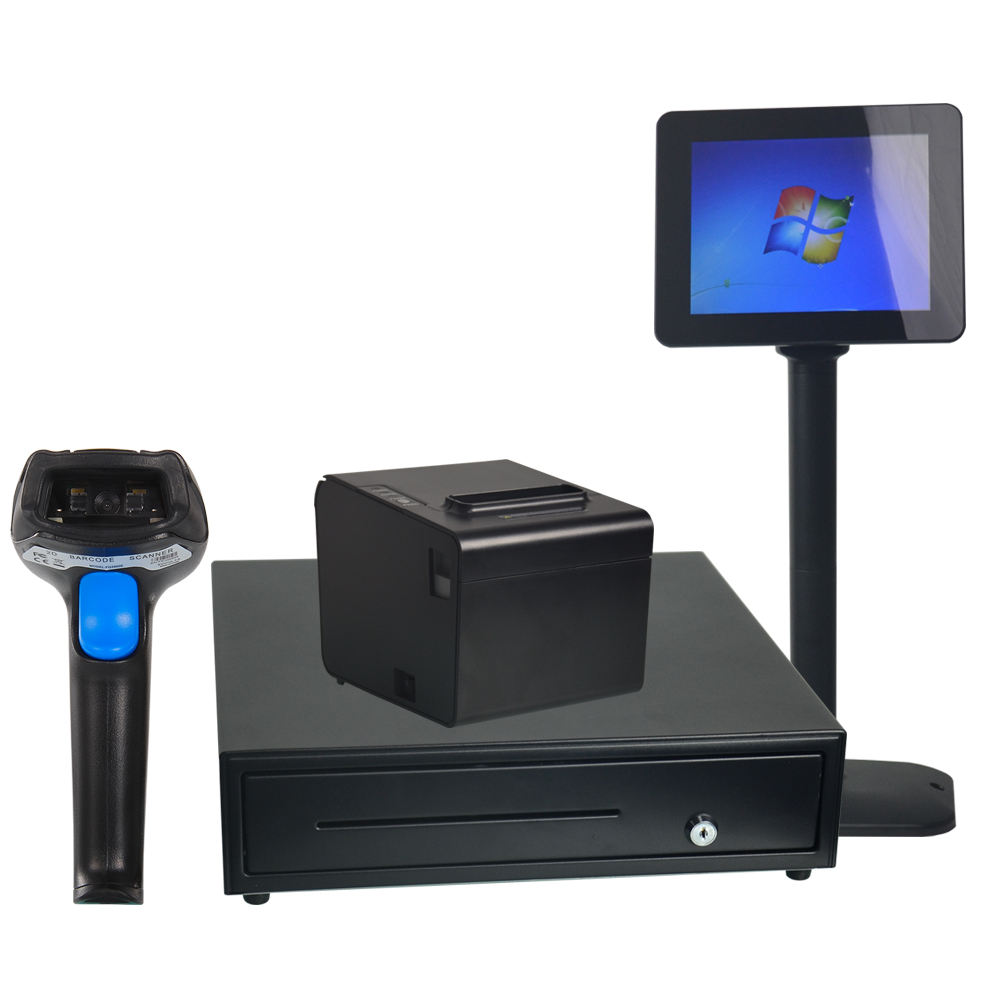

Customer Display VFD220, LED8 and
15.6 Inch Second Display optional
tablet pos system windows

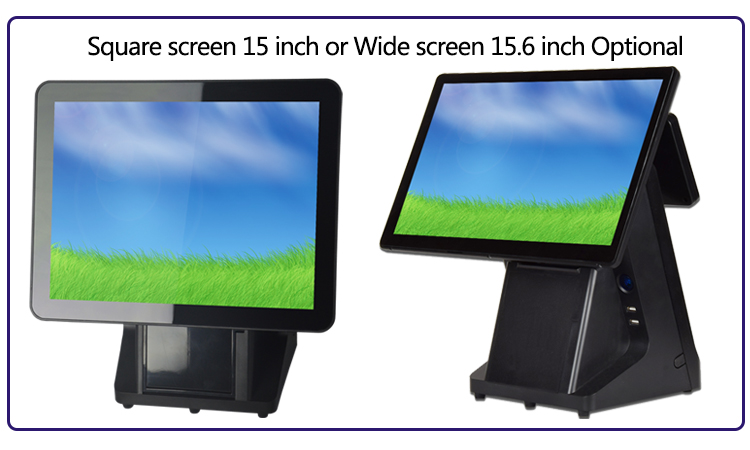

15 inch 15.6 inch tablet pos with printer
tablet pos system windows
15 inch 15.6 inch tablet pos with printer
tablet pos system windows
One-Stop Service
all in one pos systwm windows 15.6 inch tablet pos with printer uesed for many areas
