all in one touch screen

15.6' J1900 Wall Mount All In One Touch Panel PC Capacitive Touch Screen Industrial PC

AIO156-J19B
15.6 inch all in one pc
1366*768 resolution
capacitive touch panel
CPU:J1900(J3455, I3, I5 OEM)
RAM:4GB(8GB OEM)
SSD:32GB(64GB, 128GB OEM)
Delivery
EXW
minimum order
1 piece
Supply Ability
2000piece / Month
Country of Origin
China
Stock Time
7Day
Quantity:
US $240.00 - US $364.00 / piece
Contact Now
add to cart
Model No.AIO156-J19
Main Board
CPUIntel® Celeron® J1900,Quad-core, clock speed up to 2.58G, TDP 10W
ChipsetIntel Bay Trail-D
Motherboardindustrial motherboard Fanless
System MemorySupport DDR3L 1333 MHz, 4G up to 8GB
OS SupportWin 7,Win 8,win 10, Linux
Storage
SSDIndustrial 64GB(32G 128G SSD or 500G HDD（2.5"SATA) OEM)
SATA Slot1 * mSATA Slot
Display
LCD PanelIndustrial  15.6"TFT  LED
Resolution1366*768 (max) @ 60Hz
Brightness300 cd/㎡
Ilting Angle35-90 Degree
Touch ScreenAll planar capacitive touch panel(5 wire resistive touch panel oem)
I/O Ports
USBUSB2.0*2+USB3.0*4
Serial2* COM（DB9)
LAN1 * Realtek FE LAN chip (10/100/1000 Mbps)
VGA1 * VGA（DB15）
AudioALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports
DC1 * DC Power Input
Environment
PowerDC 12V 5A
Operating Temperature0℃ to 40℃
Storage Temperature－20℃ to 60℃
all in one touch screenindustrial all in one pc touch screen 15 inch all in one pc touch screen

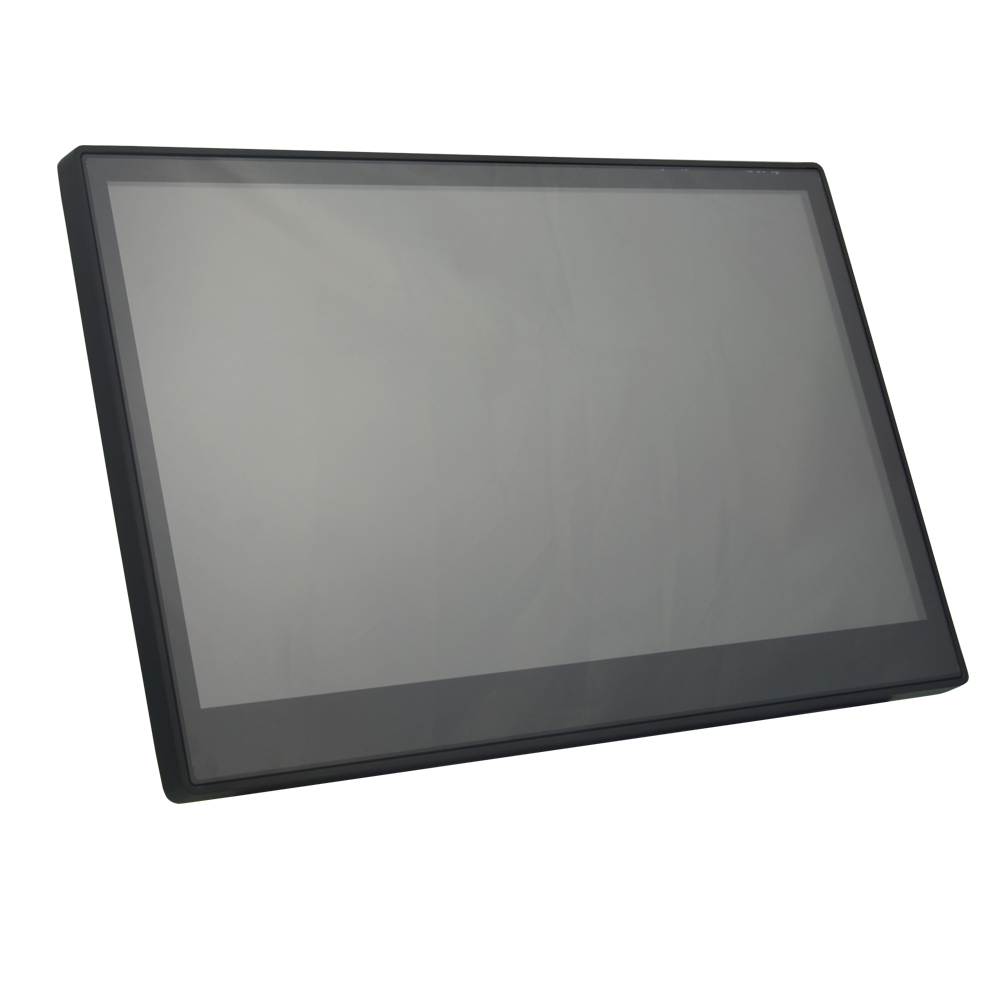

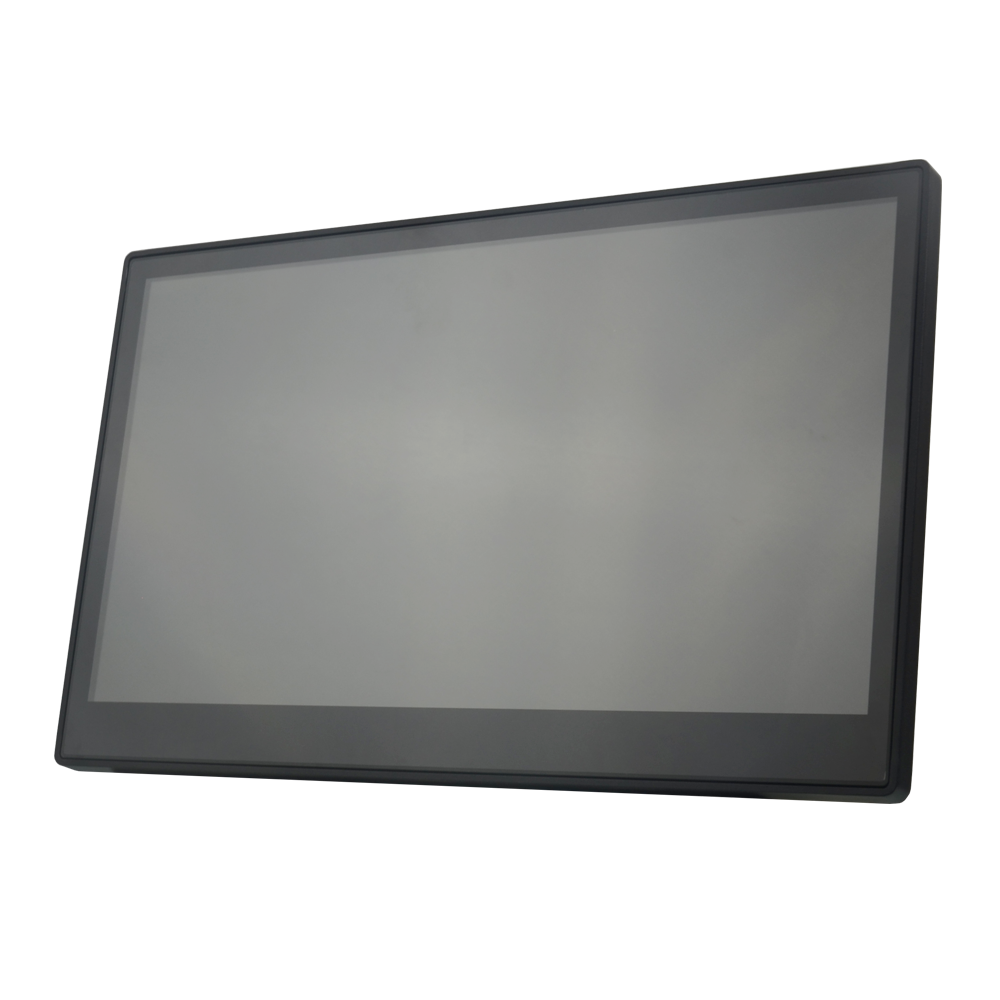

all in one touch screen



industrial panel pc touch screen



Square screen 15.6 inch

1366*768 Resolution

(1920*1080 Optional)

Capacitive touch panel

TFT-LED Panel

LED Backlight






15.6 inch all in one touch screen industrial pc


CPU: Intel Celeron J1900

RMA: DDR3L, 4GB(8GB OEM)

Chipset: Intel Bay Trail-D

Industrial motherboard Fanless

WiFi Optional

all in one touch screen
