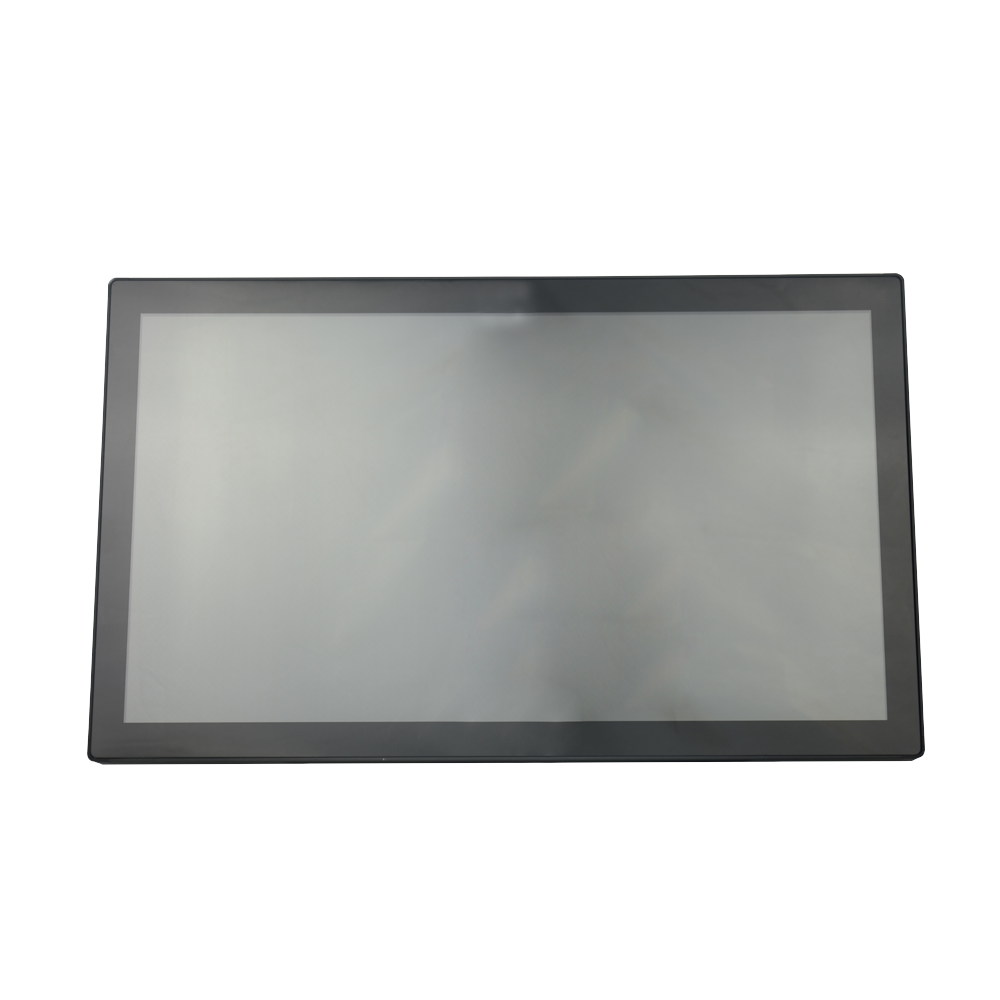

21.5 Inch Waterproof Lcd Monitor Display 1920x1080 Wall Mount Capacitive Industrial touch monitor
D-215C1-V
21.5 inch open frame indutrial monitor
Wide screen 16:9
TFT LED Panel
Metal Casing
Resolution: 1920*1080
Interface:VGA+USB(HD Optional)
Touch Panel: 10 Points capacitive touch panel
Installation:wall mounted, desktop and embedded
Wide screen 16:9
TFT LED Panel
Metal Casing
Resolution: 1920*1080
Interface:VGA+USB(HD Optional)
Touch Panel: 10 Points capacitive touch panel
Installation:wall mounted, desktop and embedded
Delivery
EXW
minimum order
2 pieces
Supply Ability
2000pieces / Month
Country of Origin
China
Stock Time
7Day
Quantity:
US $114.00 - US $149.00 / pieces
| LCD Monitor | 21.5 Inch |
| Resolution(Pixel) | 1920*1080 |
| Brightness(nit） | 300 nits |
| Contrast | 2000:1 |
| Support Color | 16.7M |
| Viewing Angle（U/D/L/R) | 85°/85°/85°/85° |
| Backlight life | 30,000 hours |
| Menu button | Auto,Menu,Left,Right,Exit,Power |
| Touch screen | |
| Types | Capacitive touch，Front IP65 |
| Transmittance | >=87%±2% |
| Communication Interface | |
| Signal input | 15Pin D-Sub VGA+HD-MI |
| Touch communication | USB |
| Power supply | |
| Power input | DC12V 4A, DC Jack 2.0mm |
| Power consumption | ＜＝46W |
| Mechanical | |
| Material | High-strength cold-rolled plate,plastic parts frame |
| Installation method | Upper and lower M4 installation reserved holes |
| Left and right M4 installation reserved holes | |
| Standard VESA 75x75mm 100x100mm | |
| Open structure, support embedded installation | |
| Environmental parameters | |
| Operating Temperature | -20℃～60℃ |
| Storage temperature | -30℃～70℃ |
| Environment humidity | 10～90%@40℃Non-coagulated |

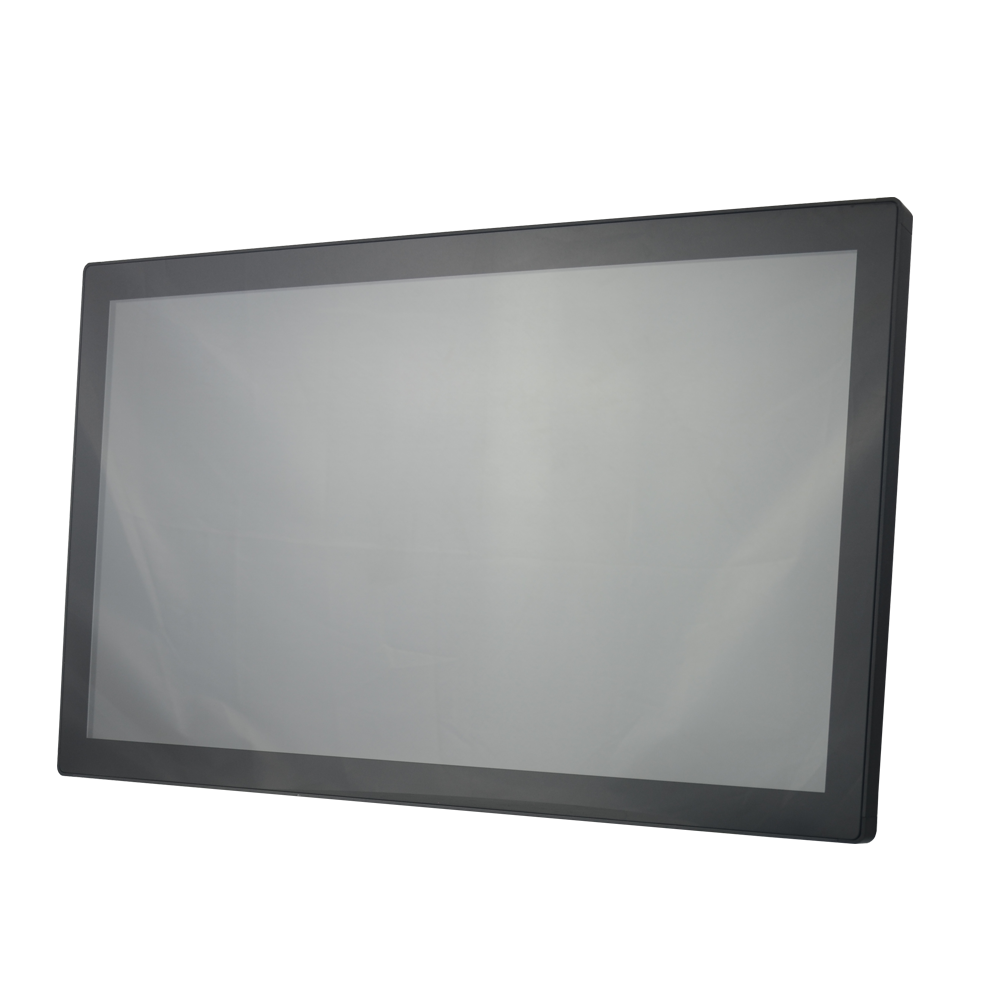

Open Frame Capacitive Touch Monitor
Wide Screen 21.5 Inch 16:9
TFT LED Panel
1920*1080 Resolution
LED Backlight
21.5 inch touch monitor
True Flat Display
Capacitive touch panel
Matel Casing
Sensistive touch
